Product Details:
|
| Name: | 4.3 InchTouchscreen Display | Display Mode: | Normally Black,Transmissive |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Driver IC: | ILI6485 |
| Viewing Direction: | ALL | Viewing Angles: | 85/85/85/85 |
| Operating Temperature: | -20℃ To 70℃ | LCM Outline: | 105.45*67.15*4.52mm |
| Highlight: | 1000:1 IPS Touchscreen Display,IPS Touchscreen Display 480×272,Touch Screen Module 400 Cd/M2 |
||
The TFT Capacitive Touch Screen has a luminance of 400cd/m2, which means that it can display clear and bright images even in bright environments. The screen size of this display is 4.3 inches, which makes it ideal for use in small devices. The display also has a wide viewing angle of 85/85/85/85, which means that users can view the display from any angle without any distortion.
This TFT Module Display has an interface of 24 Bit RGB, which means that it can support a wide range of colors. This makes it ideal for use in applications where accurate color reproduction is required, such as in medical imaging or photography. The display also offers a high contrast ratio, which ensures that images and text are displayed with clarity.
The capacitive touchscreen of the TFT Capacitive Touch Screen is highly responsive, making it easy to interact with the device. Users can swipe, tap, and pinch to zoom, just like on a smartphone or tablet. The touchscreen also supports multi-touch gestures, which makes it ideal for use in gaming applications.
In conclusion, the TFT Capacitive Touch Screen is a high-quality display that offers advanced features for various applications. Its driver IC, ILI6485, ensures fast and efficient performance, while its luminance of 400cd/m2 and wide viewing angle make it ideal for use in various environments. Its 24 Bit RGB interface and high contrast ratio ensure accurate color reproduction and clear display of images and text. The capacitive touchscreen is highly responsive and supports multi-touch gestures, making it ideal for use in interactive applications.

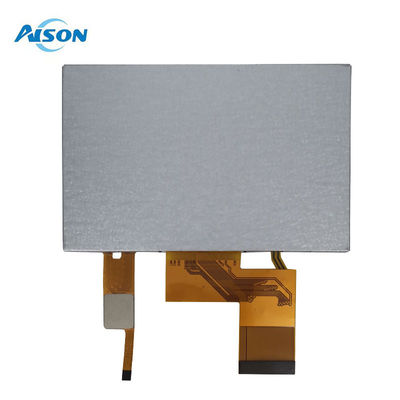

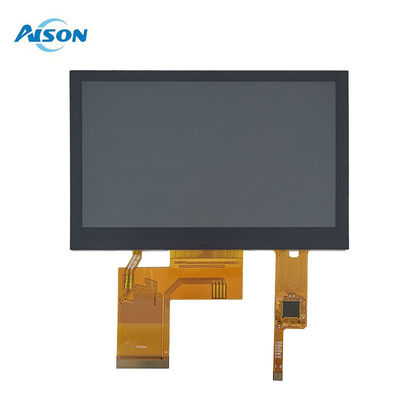

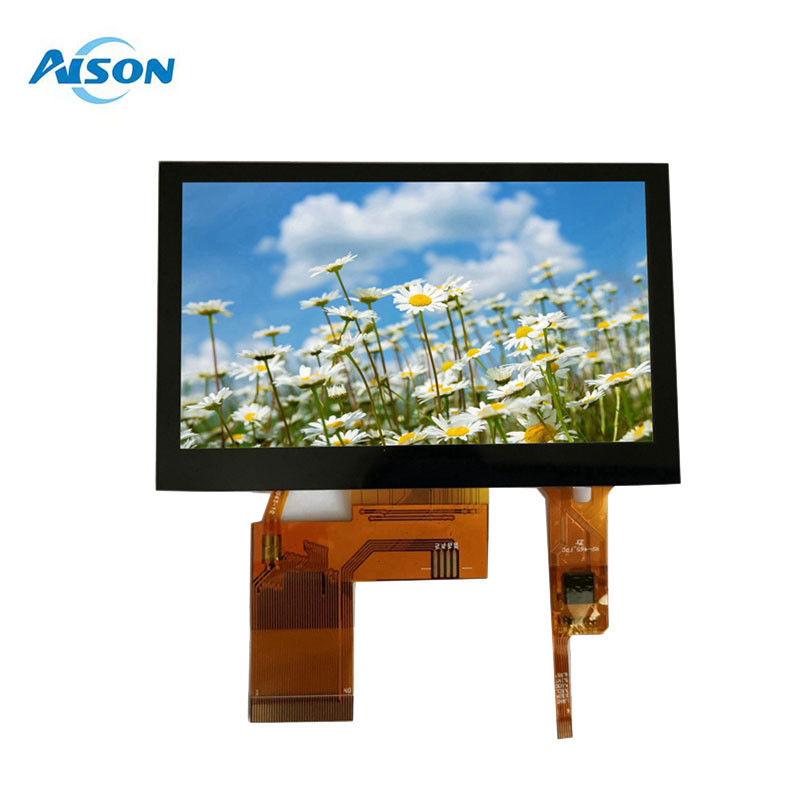

The Z043WQ34 IPS series is a 4.3” TFT LCD with 480x272 resolution, in-plane switching technology (IPS), and optional resistive or capacitive touch panel. The IPS technology ensures consistent, true-to-life colors and remarkable visibility from every angle, making it the best choice for applications where viewing perspectives matter. This 4.3” LCD module has the Sitronix SC7283 or ILI6485 system-on-chip driver IC which supports higher color resolution featuring 256-gray scale with true 8-bit DAC (digital to analog converter). The 4.3” TFT display is designed for consumer applications such as mobile navigation systems, video systems, and other electronic devices.
Here blw is our customized solution process for the TFT display without/with touch screens.Welcome to send us your requirements for the
lcd module and touch panel customized solutions.
