Product Details:
|
| Product: | 7 Inch Resistive Touch Screen | Resolution: | 800x480 |
|---|---|---|---|
| Module Size: | 164.9*100.0*6.9 Mm | Active Area: | 154.08 X 85.92mm |
| Interface Type: | 24 Bit RGB | Luminance: | 300 Cd/m2 |
| Operating Temperature: | -20~70℃ | Storage Temperature: | -30~80℃ |
| View Direction: | TN,12 O'clock | ||
| Highlight: | 7 Inch TFT Resistive Touch Screen,TFT Resistive Touch Screen 800X480,Touchscreen Display Module 300 Cd/M2 |
||

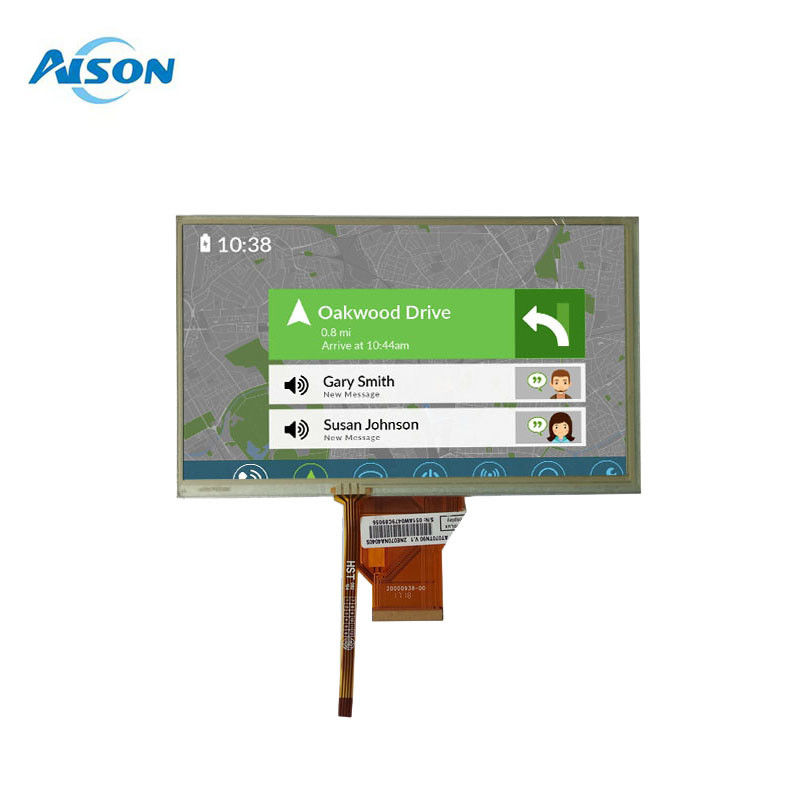

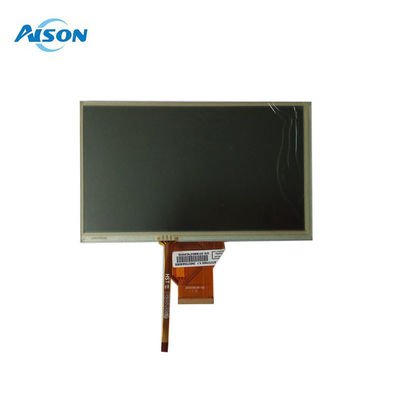

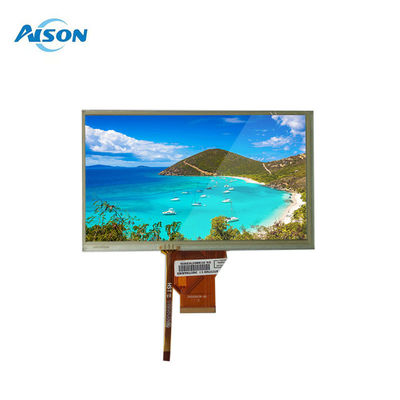

7 Inch TFT Resistive Touch Screen 800X480 Touchscreen Display Module 300 Cd/M2
Introducing the Z070TN92-T, a 7-inch TFT Display Module designed to deliver exceptional performance and versatility. This 7-inch TFT Display is a 7-inch LCD module that integrates a 7-inch resistive touch screen, offering a seamless combination of clarity and interactivity. With a WVGA resolution of 800x480 pixels, the display provides sharp and vibrant visuals on its 7-inch TFT-LCD screen.
The Z070TN92-T is powered by EK79713CA and EK73202AB2 driver ICs and is compatible with a 24-bit RGB interface, ensuring high-quality image rendering. It features a typical brightness of 300 nits, delivering clear visibility in various lighting conditions. The module operates on a supply voltage (VCC) ranging from 3.0V to 3.6V, with a typical value of 3.3V, making it adaptable to different power configurations.
With a viewing angle of 12 o'clock and gray scale inversion at 6 o'clock, the Z070TN92-T offers a 16:9 aspect ratio, providing a balanced and immersive display experience. Its contrast ratio of 800:1 (typical value) ensures vivid colors and sharp details. The module is designed to operate within a temperature range of -20°C to +70°C and can be stored at temperatures from -30°C to +80°C, making it suitable for diverse environmental conditions.
This 7-inch TFT Display is a versatile solution for a wide range of applications, including embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products. Its compact design, advanced functionality, and robust performance make it an ideal choice for developers and manufacturers seeking a reliable and high-quality display solution.
General Data
| Model Name | 7 inch RTP TFT LCD Module |
| Resolution | 800*(RGB)*480 |
| Model Size (W*H*T)mm | 164.9*100*6.9 mm |
| Display Area (W*H)mm | 154.08 x 85.92mm |
| Interface | RGB |
| Display Type | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 300 cd/m2 |
| Pin number | 50 |
| Interface | RGB |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.
