Product Details:
|
| Name: | 7 Inch TFT Capacitive Touch Screen | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 164.9*100*7.25 Mm | Active Area: | 153.84 X 85.63mm |
| Interface: | 24 Bit RGB | Brightness: | 400cd/m2 |
| LCD Type: | TFT, Normally Black, Transmissive | Gray Scale Inversion Direction: | 6 O’clock |
| Highlight: | IPS TFT Capacitive Touch Screen,Capacitive Touch Screen 350 Nits,Capacitive Touchscreen Display 1000:1 |
||

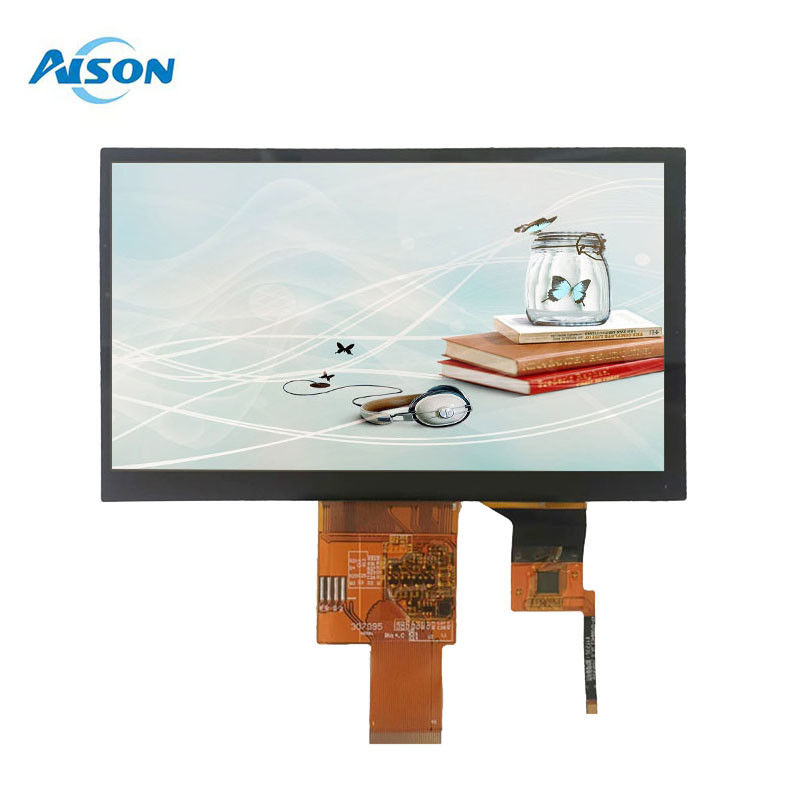

7 inch 800x480 IPS TFT Capacitive Touch Screen Display RGB 40 PIN
Z070WV45-CT is a 7-inch IPS TFT LCD module with a Projected Capacitive Touch Panel, featuring a resolution of 800x480 pixels. The module has dimensions of 164.9*100 mm and an active area size of 153.84 x 85.63mm, with an aspect ratio of 16:9.
Integrated with EK79713CA+EK73202AB2 driver ICs, supporting RGB 24 bit interface, it boasts a contrast ratio of 1000:1 (typical value) and a brightness of 350 nits (typical value). The display surface is made of glare surface glass, adopting a normally black, transmissive LCD type. The Projected Capacitive Touch Panel of Z070WV45-CT incorporates the GT911 IC, supporting I2C interfaces and 5-points touch function.
General Data
| Product Name | 7 inch TFT Display with touch screen |
| Resolution | 800*(RGB)*480 |
| Model Size (W*H*T)mm | 164.9*100*7.25mm |
| Display Area (W*H)mm | 153.84 x 85.63mm |
| Interface | 24 Bit RGB |
| Display Type | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 350 cd/m2 |
| Pin number | 40 |
|
Contrast Ratio
|
1000:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing

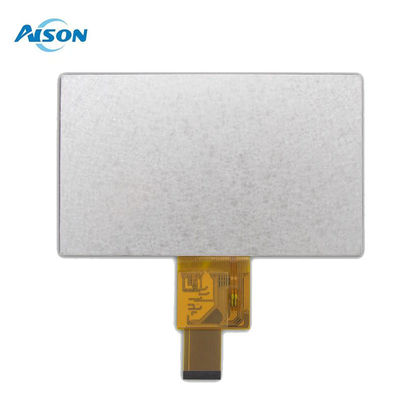

Product Details
TFT Applications
These tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
