Product Details:
|
| Name: | 3.5 Inch TFT Resistive Touchscreen | Resolution: | 320x240 |
|---|---|---|---|
| Outline Dimension: | 76.90*63.9*4.5mm | Active Area: | 70.08 X 52.56mm |
| Interface: | 24 Bit RGB | Brightness: | 300cd/m2 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 320x240 TFT Resistive Touchscreen,TFT Resistive Touchscreen 3.5 Inch,TFT LCD Module With Touch Screen |
||

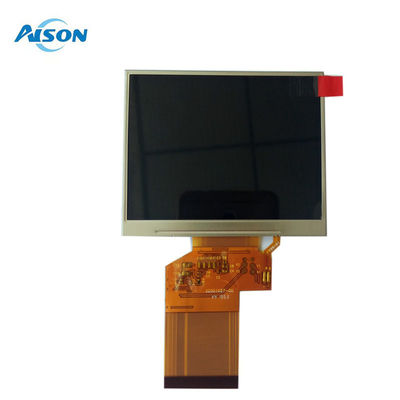

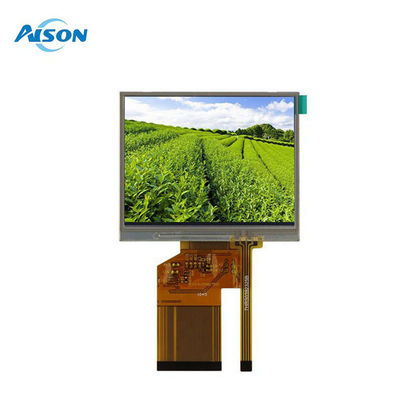

3.5'' 320x240 TFT Resistive Touchscreen 3.5 Inch TFT LCD Module With Touch Screen
Display General Description
The Z035NC111-T is a versatile 3.5-inch color TFT LCD module display boasting a resolution of 320 x 240 dots and an aspect ratio of 4:3. It features a resistive touch panel, enhancing user interaction and functionality. Equipped with the HX8238 driver IC, this TFT display ensures smooth and reliable performance. It supports a 24-bit RGB interface for seamless integration with various systems.
The display ensures optimal viewing with aview direction at 12 o'clock. The supply voltage for the LCM ranges from 3.0V to 3.6V, with a typical value of 3.3V. This module can operate at temperatures ranging from -20℃ to +70℃, with storage temperatures ranging from -30℃ to +80℃.
General Data
| Model Name | 3.5 inch RTP TFT Display |
| Resolution | 320x240 |
| Model Size (W*H*T) | 76.90*63.9*4.5mm |
| Display Area (W*H) | 70.08 x 52.56mm |
| Interface | RGB |
| Display Mode | Normally White,Transmissive |
| Viewing | 12 o'clock |
| Brightness | 300 cd/m2 |
| Pin number | 54 pin |
| Driver IC | HX8238D |
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
Product Details
TFT Applications
This 3.5 inch 320x240 lcd module whether used in field measurements, industrial environments, or testing applications, the Z035NC111-CT guarantees reliable performance.
