Product Details:
|
| Product Name: | 3.5 Inch TFT Capacitive Touch Panel | Resolution: | 320x240 |
|---|---|---|---|
| Outline Dimension: | 76.90*63.9*4.71mm | A.A Size: | 70.08 X 52.56mm |
| Interface Type: | 24 Bit RGB | Brightness: | 300 Cd/m2 |
| Working Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 3.5 Inch TFT Capacitive Touch Screen,TFT Capacitive Touch Screen 300 Cd/M2,Color Touch Display 320x240 |
||

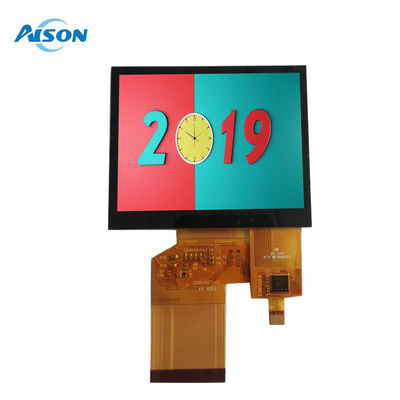

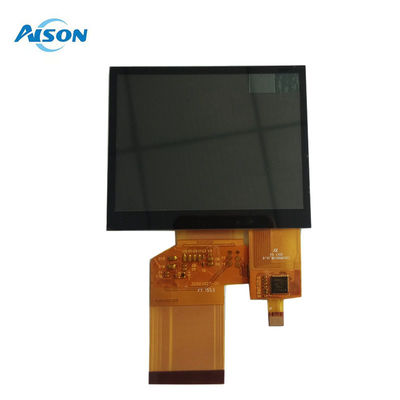

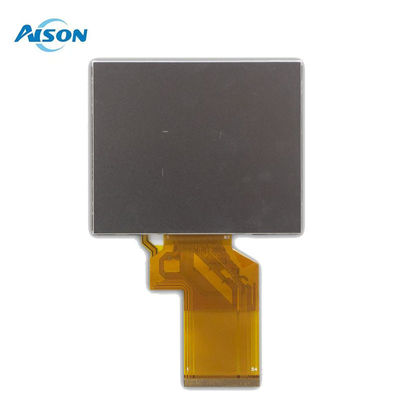

3.5 inch TFT LCD Module Color Display with Capacitive Touch 320x240 RGB Interface
The Z035NC111-CT is a 3.5-inch Projected Capacitive Touch Panel TFT LCD display module, featuring a brightness of 300 nits (typical value).With a 350:1 (typical value) contrast ratio, it ensures clear and stable images under various lighting conditions. This display module has a resolution of 320x240 pixels, offering sufficient clarity for portable devices. Whether used in field measurements, industrial environments, or testing applications, the Z035NC111-CT guarantees reliable performance.
The Z035NC111-CT uses the HX8238D driver IC and supports a 24-bit RGB interface for efficient and vibrant color display. The touch panel is equipped with GT5663 IC and supports I2C interface, with 5-point capacitive touch capability, offering a seamless and responsive user experience.
General Data
| Model Name | 3.5 inch TFT Display |
| Resolution | 320x240 |
| Model Size (W*H*T) | 76.90*63.9*4.71mm |
| Display Area (W*H) | 70.08 x 52.56mm |
| Interface | RGB |
| Display Mode | Normally White,Transmissive |
| Viewing | 12 o'clock |
| Brightness | 300 cd/m2 |
| Pin number | 54 pin |
| Driver IC | HX8238D |
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
Product Details
TFT Applications
This 3.5 inch 320x240 lcd module whether used in field measurements, industrial environments, or testing applications, the Z035NC111-CT guarantees reliable performance.
