Product Details:
|
| Name: | 4.3 Inch Resistive Touch Screen | Resolution: | 480x272 |
|---|---|---|---|
| Outline Dimension: | 105.45*67.15*4.2 Mm | Active Area: | 95.04 X 53.856 Mm |
| Interface: | 24 Bit RGB | Brightness: | 350 Cd/m2 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 480x272 Resistive Capacitive Touch Screen,Resistive Capacitive Touch Screen 4.3 Inch,LCD Resistive Touchscreen Color |
||

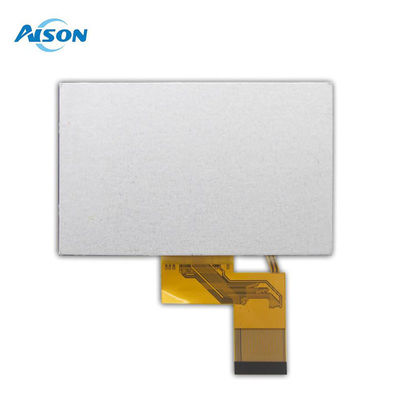

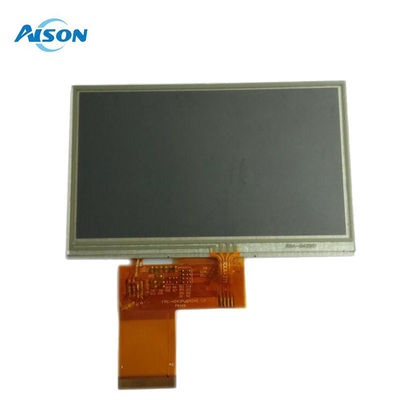

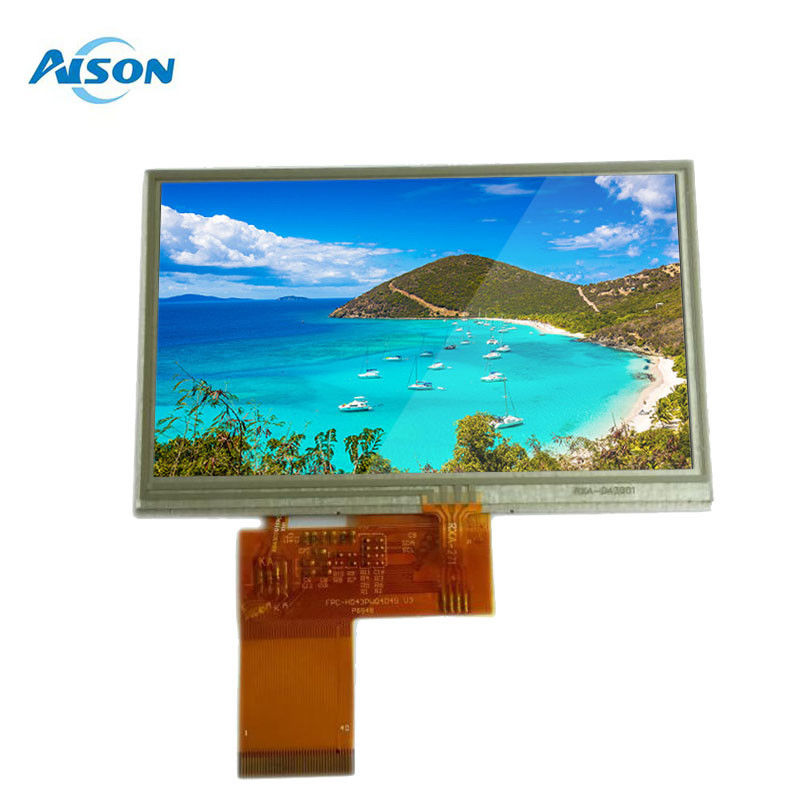

4.3 inch 480x272 Resistive Touch Screen 4.3 Inch RTP TFT Display
The Z043WQ34H-T IPS TFT LCD module is a 4.3-inch diagonal display with a resistive touch panel (RTP) and a resolution of 480x272 pixels, offering vibrant full-color output. With outline dimensions of 105.5 x 67.2 mm and an active area of 95.04 x 53.86 mm, it provides ample screen real estate for various applications. This module is built with the ILI6485 IC and supports a 24-bit RGB interface.
Boasting a 16:9 aspect ratio, the module delivers a visually pleasing experience for users, with a brightness of 350 nits and a contrast ratio of 1000:1. Operating at supply voltages ranging from 3.0V to 3.5V, with a typical value of 3.3V, it offers efficient power management.
Designed to perform in diverse environments, this module can operate within temperatures ranging from -20℃ to +70℃, with storage capabilities spanning from -30℃ to +80℃. Its versatility makes it an excellent choice for portable electronic devices, automotive entertainment systems, household electronics, industrial equipment and instrumentation, safety systems, and more.
General Data
| Model Name | 4.3 inch RTP IPS TFT Display |
| Resolution | 480x272 |
| Model Size (W*H*T) |
105.45*67.15*4.2 mm
|
| Display Area (W*H) | 95.04 x 53.856 mm |
| Interface | 24 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 350 cd/m2 |
| Pin number | 40 pin |
| Driver IC |
ILI6485
|
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
Product Details
TFT Applications
This 480x272 IPS 4.3 inch RTP lcd module display is an excellent choice for portable electronic devices, automotive entertainment systems, household electronics, industrial equipment and instrumentation, safety systems, and more.
