Product Details:
|
| Name: | 4.3 Inch TFT Display | Resolution: | 480x272 |
|---|---|---|---|
| Outline Dimension: | 105.45*67.15*3 Mm | Active Area: | 95.04 X 53.856 Mm |
| Interface: | 24 Bit RGB | Brightness: | 1000 Cd/m2 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | High Brightness TFT Display,TFT Display 480x272,4.3 Inch LCD Display Module |
||

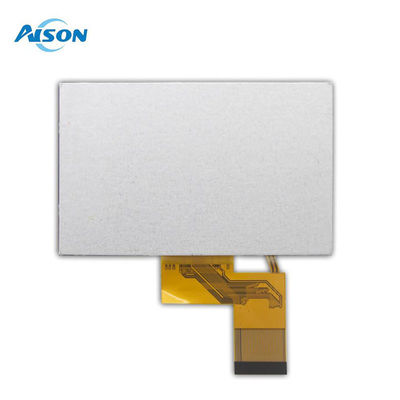

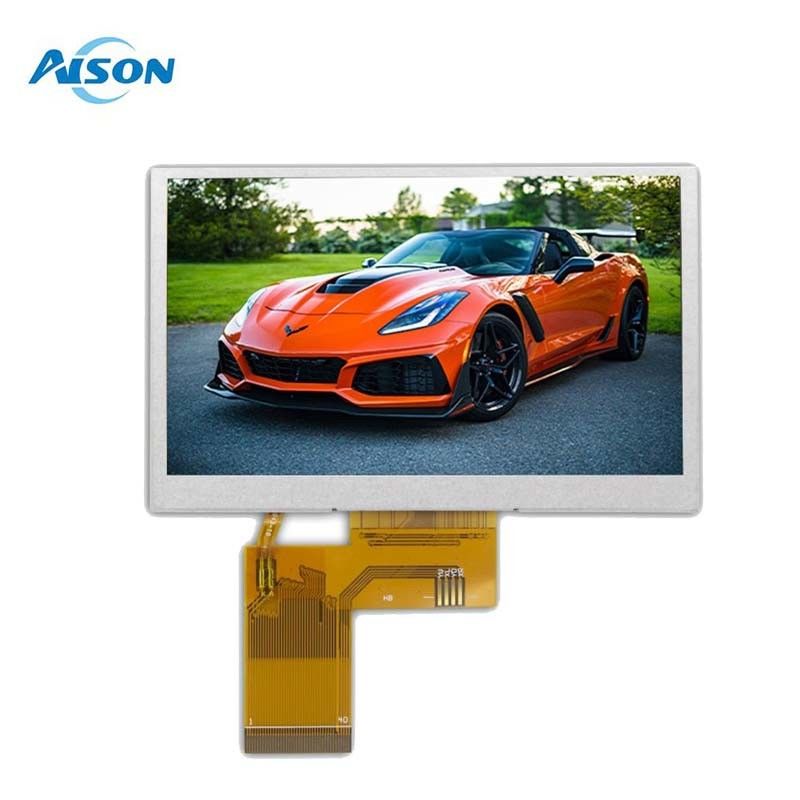

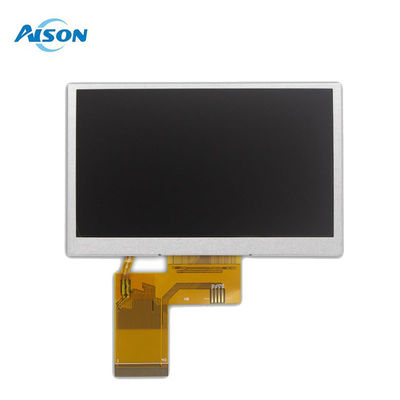

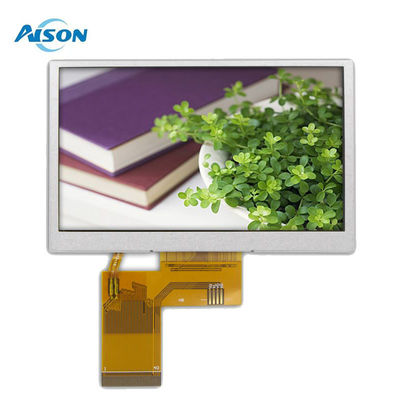

High Brightness 4.3 Inch IPS TFT Display 480x272 RGB Interface
Z043WQ34J is a 4.3 inch IPS TFT LCD module with 1000 cd/m2 high brightness. Its resolution is 480x272 dots.The module is built-in with ILI6485 driver IC, supporting 24-bit RGB interfaces.This 1000 cd/m2 brightness 4.3 inch tft display is perfect for outdoor measuring equipment, industrial devices, testing equipment, measuring instruments, etc.
Its supply voltage for logic (VCC) is from 3.1V to 3.5V with a typical value of 3.3V. It features an anti-glare surface and a 16:9 aspect ratio. This 4.3 inch TFT display can operate at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.
General Data
| Model Name | 4.3 inch IPS TFT Display |
| Resolution | 480x272 |
| Model Size (W*H*T) |
105.45*67.15*3
|
| Display Area (W*H) | 95.04 x 53.856 mm |
| Interface | 24 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 1000 cd/m2 |
| Pin number | 40 pin |
| Driver IC |
ILI6485
|
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
Product Details
TFT Applications
This 1000 cd/m2 hight brightness 4.3 inch tft display is perfect for outdoor measuring equipment, industrial devices, testing equipment, measuring instruments, etc.
