Product Details:
|
| Name: | 4.3 Inch IPS LCD Module | Resolution: | 480x272 |
|---|---|---|---|
| Outline Dimension: | 105.45*67.15*4.52 Mm | Active Area: | 95.04 X 53.856 Mm |
| Interface: | 24 Bit RGB | Brightness: | 450 Cd/m2 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | PCAP IPS LCD Module,IPS LCD Module 480x272,LCD Touch Screen 450 Cd/M2 |
||

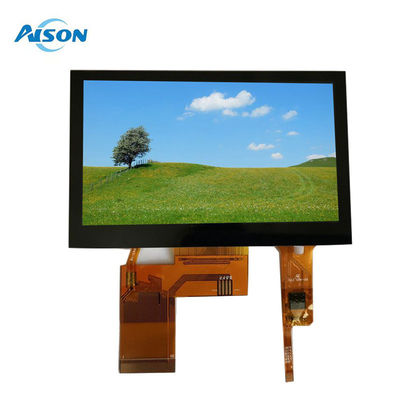

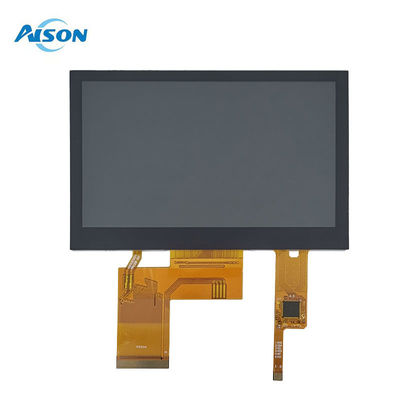

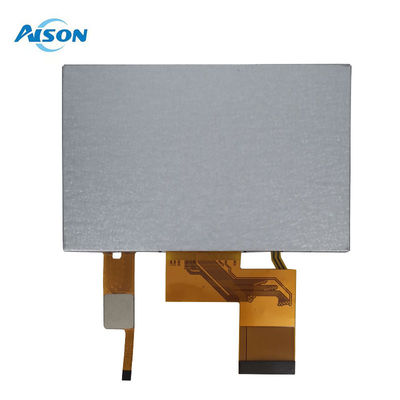

4.3 inch 480x272 PCAP IPS TFT LCD Display RGB 24 Bit Interface
General Data
| Model Name | 4.3 inch PCAP IPS TFT Display |
| Resolution | 480x272 |
| Model Size (W*H*T) |
105.45*67.15*4.52 mm
|
| Display Area (W*H) | 95.04 x 53.856 mm |
| Interface | 24 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 400 cd/m2 |
| Pin number | 40 pin |
| Driver IC |
ILI6485
|
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
Product Details
TFT Applications
This 4.3 inch 480x272 IPS TFT LCD Displays are suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
