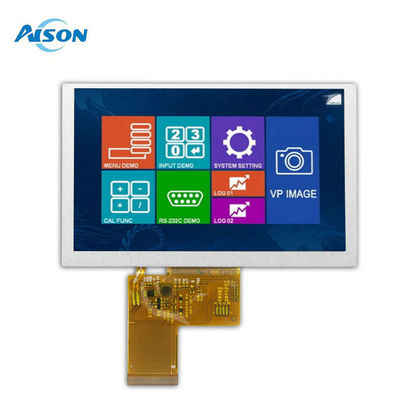

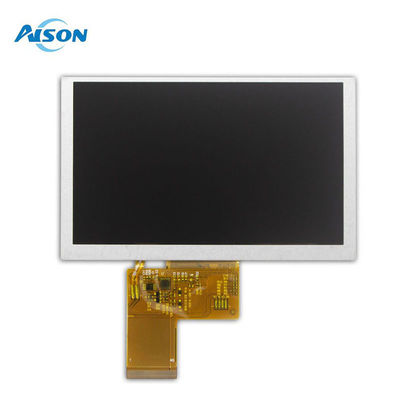

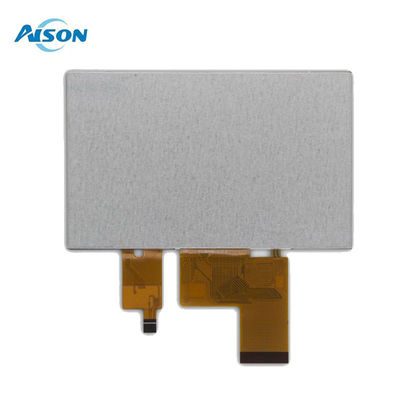

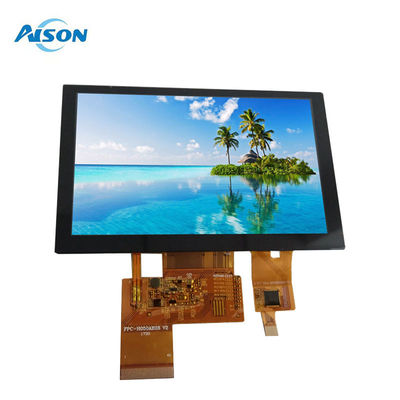

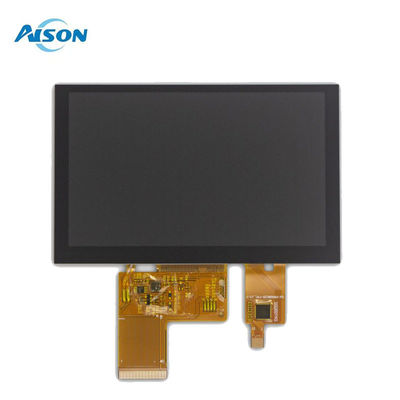

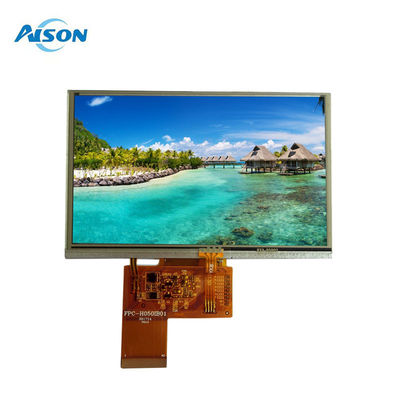

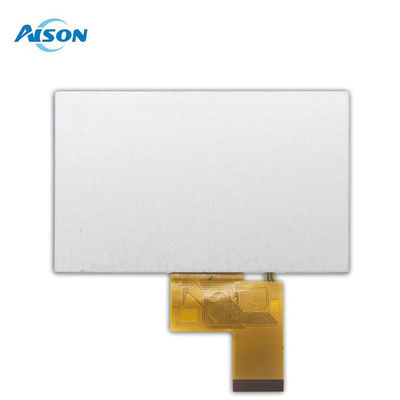

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2
5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

Large Image :  5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z050WV21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 200k/month
Contact Now

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

Description
Name: 5 Inch LVDS TFT Module Display Resolution: 800x480
Outline Dimension: 120.7*75.8*2.9mm Active Area: 108 X 64.80 Mm
Interface: LVDS Brightness: 500cd/m2
Display Mode: TFT, Normally Black, Transmissive Viewing Direction: ALL/IPS
Operating Temperatures: -30 To 80 ℃ Storage Temperatures: -35 To 85 ℃
Highlight:

800x480 TFT LCD Screen Module

,

TFT LCD Screen Module 5 Inch

,

IPS TFT Display 500 Cd/M2

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2



Display General Description

Z050WV21 is a 5 inch IPS TFT LCD panel display featuring IPS panel technology and a resolution of 800 x 480 pixels. The TFT-LCD module supports a LVDS interface. It boasts a brightness of 500 nits (typical) and a high contrast ratio of 1000:1 (typical). Additionally, it offers a wide operating temperature range from -30°C to +80°C, with a storage temperature range of -35°C to +85°C.

This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). The supply voltage of Z050WV21 model is from 3.1 to 3.6V, aspect ratio 5:3, normally black, transmissive LCD type, Anti-glare surface glass.



General Data

Model Name 5 Inch IPS TFT LCD Display
Resolution 800x480
Model Size (W*H*T)
120.7*75.8*2.9 mm
Display Area (W*H)
108 x 64.80 mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing Angels 85/85/85/85
Brightness 500 cd/m2
Pin number 40
Contrast Ratio
 1000:1
BACKLIGHT TYPE 12 WHITE LED
Operating temperatures -30 to 80 ℃
Storage temperatures -35 to 85 ℃





Drawing


5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 0



Product Details

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 15'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 2







TFT Applications



The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2 3
