Product Details:
|
| Name: | 10.1 Inch USB Touch Screen Display | Resolution: | 1280X800 |
|---|---|---|---|
| Module Dimension: | 260X169*5.7mm | Active Area: | 216.96X135.6mm |
| Interface: | LVDS | Display Mode: | Normally Black, Transmissive |
| Brightness: | 300 Cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Contrast Ratio: | 1000:1 | ||
| Highlight: | LVDS IPS Touch Screen Display,Touch Screen Display 1280x800,1280x800 IPS Display 10.1 Inch |
||

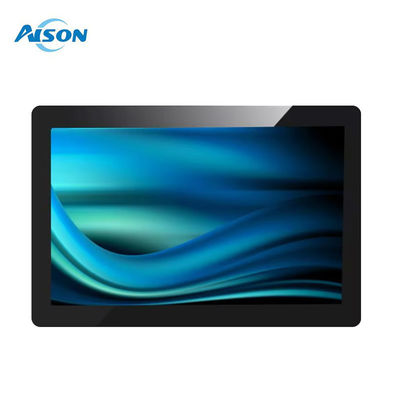

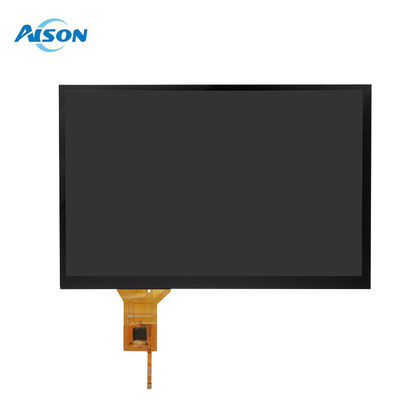

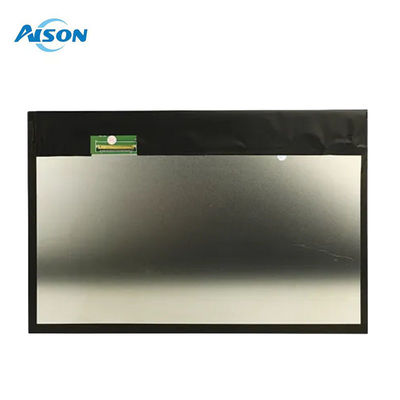

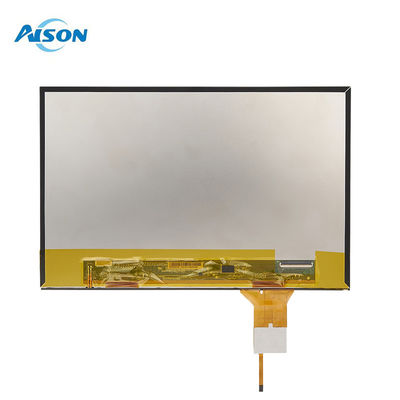

10.1 inch LVDS IPS Touch Screen Display 1280x800 TFT Display With Captouch Screen
Display General Description
The Z101WX21-CT is a remarkable 10.1-inch LVDS TFT LCD featuring a Projected Capacitive Touch Panel (PCAP), specifically designed for a wide range of applications, including industrial control panels, testing equipment, medical devices, vending machines, and automatic payment machines.
Z101WX21-CT is a 10.1-inch IPS TFT LCD Panel with high resolution of 1280 x 800 pixels. This module is built-in with EK79202B1 driver IC, and it supports LVDS interface. Z101WX21-CT is adopted IPS panel which is having the advantage of wider view angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 1000:1 (typical value), brightness 350 nits (minimum value), anti-glare surface panel, aspect ratio 16:10.
Z101WX21-CT model is also available in projected capacitive touch screen (PCAP) and resistive touch screen (RTP) and we can support all kinds of custom solutions for customer.
The supply voltage (VCC) of Z101WX21-CT is from 3.0V to 3.5V, the typical value of 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.This 10.1 inch IPS lcd module is built to withstand diverse environmental conditions.
General Data
| Model Name | 10.1 inch LVDS IPS Touch Screen Display |
| Resolution | 1280X800 |
| Model Size (W*H*T)mm |
260X169*5.7
|
| Display Area (W*H)mm |
216.96X135.6
|
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 300 cd/m2 |
| Pin number | 40 |
| Viewing Angle | 85/85/85/85 |
| BACKLIGHT TYPE | 36 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
The Z101WX21-CT is a remarkable 10.1-inch LVDS TFT LCD featuring a Projected Capacitive Touch Panel (PCAP), specifically designed for a wide range of applications, including industrial control panels, testing equipment, medical devices, vending machines, and automatic payment machines.
