Product Details:
|
| Item: | 4.3'' TFT Resistive Touch Screen | Resolution: | 480x272 |
|---|---|---|---|
| Module Size: | 105.5*67.2*4.2mm | Active Area: | 95.04 X 53.856mm |
| Interface Type: | 24 Bit RGB | Driver Controller: | ST7282 |
| Luminance: | 350 Cd/m2 | Display Type: | TFT,Normally White |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Touch Panel: | RTP | ||
| Highlight: | 4.3 Inch TFT Resistive Touch Screen,TFT Resistive Touch Screen 350 cd/m2,Color TFT Screen 480X272 |
||
4.3 Inch TFT Resistive Touch Screen 350 cd/m2 Color TFT Screen 480X272 With RGB Interface

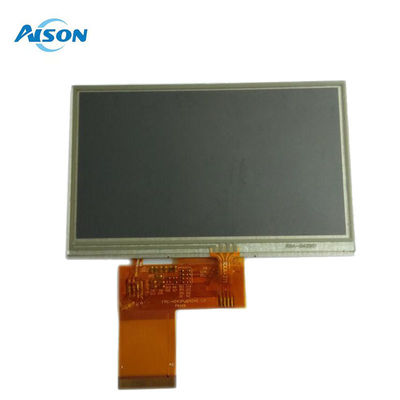

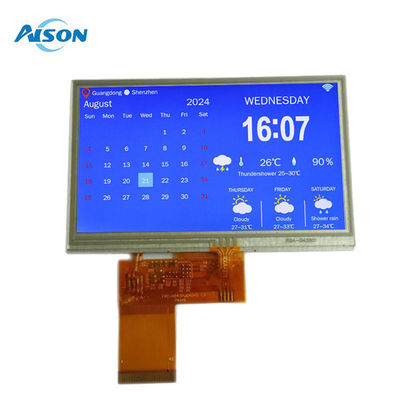

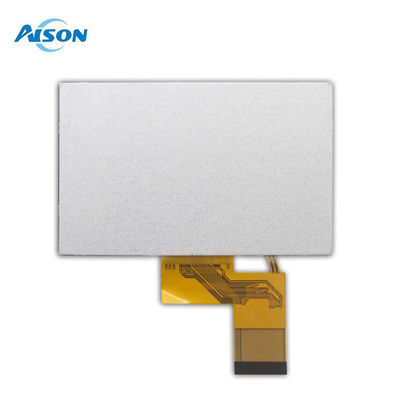

The Z043WQ19-T TFT LCD module is a 4.3-inch diagonal display with a resistive touch panel (RTP) and a resolution of 480x272 pixels, offering vibrant full-color output. With outline dimensions of 105.5 x 67.2 mm and an active area of 95.04 x 53.86 mm, it provides ample screen real estate for various applications. This module is built with the ST7282 IC and supports a 24-bit RGB interface.
Boasting a 16:9 aspect ratio, the module delivers a visually pleasing experience for users, with a brightness of 350 nits and a contrast ratio of 500:1. Operating at supply voltages ranging from 3.0V to 3.5V, with a typical value of 3.3V, it offers efficient power management.
Designed to perform in diverse environments, this module can operate within temperatures ranging from -20℃ to +70℃, with storage capabilities spanning from -30℃ to +80℃. Its versatility makes it an excellent choice for portable electronic devices, automotive entertainment systems, household electronics, industrial equipment and instrumentation, safety systems, and more.
For further inquiries about our AISON hot sale 4.3" TFT Display, please don't hesitate to contact us online.
General Data
| Model Name | 4.3 inch Resistive Touch Panel |
| Resolution | 480x272 |
| Model Size (W*H*T) | 105.5*67.2*4.2mm |
| Display Area (W*H) | 95.04 x 53.856mm |
| Interface | 24 Bit RGB |
| Display Mode | Normally White,Transmissive |
| Viewing | 12 o'clock |
| Brightness | 350 cd/m2 |
| Pin number | 40 |
| Drive IC | ST7282 |
| Touch | Resistive Touch Panel |
| Operating temperatures | -30 to 80 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
AISON TFT LCD Displays are suitable for various applications.This 4.3 inch 480x272 tft displays can used for portable electronic devices, automotive entertainment systems, household electronics, industrial equipment and instrumentation, safety systems, and more.
