Product Details:
|
| Name: | 10.1inch TFT LCD Display | Resolution: | 1280X800 |
|---|---|---|---|
| Outline Dimension: | 229.46X149.1*2.8mm | Active Area: | 216.96X135.6mm |
| Interface: | LVDS | Display Mode: | Normally Black, Transmissive |
| Brightness: | 350 Cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Contrast Ratio: | 1000:1 | ||
| Highlight: | 10.1 Inch LCD Display,LCD Display 1280x800,IPS TFT LCD Display 40pin |
||

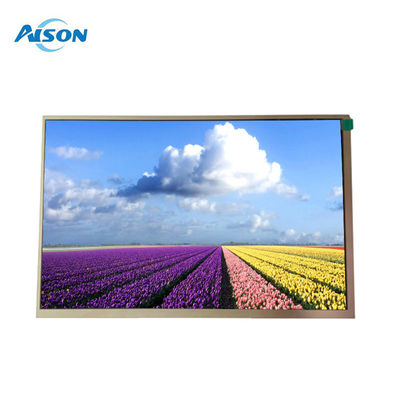

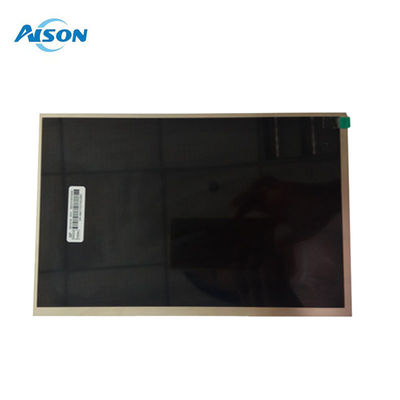

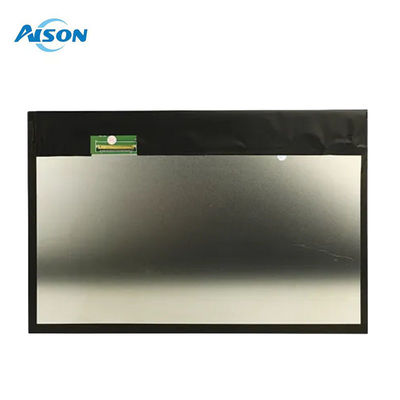

10.1 inch 1280x800 IPS TFT LCD Display with LVDS Interface 40pin
Display General Description
Z101WX21 is a 10.1-inch IPS TFT LCD Panel with high resolution of 1280 x 800 pixels. This module is built-in with EK79202B1 driver IC, and it supports LVDS interface. Z101WX21 is adopted IPS panel which is having the advantage of wider view angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical), contrast ratio 1000:1 (typical value), brightness 350 nits (minimum value), anti-glare surface panel, aspect ratio 16:10.
Z101WX21 model is also available in projected capacitive touch screen (PCAP) and resistive touch screen (RTP) and we can support all kinds of custom solutions for customer.
The supply voltage (VCC) of Z101WX21 is from 3.0V to 3.5V, the typical value of 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.This 10.1 inch IPS lcd module is built to withstand diverse environmental conditions.
General Data
| Model Name | 10.1 inch IPS TFT LCD Display |
| Resolution | 1280X800 |
| Model Size (W*H*T)mm |
229.46X149.1*2.8
|
| Display Area (W*H)mm |
216.96X135.6
|
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 300 cd/m2 |
| Pin number | 40 |
| Viewing Angle | 85/85/85/85 |
| BACKLIGHT TYPE | 36 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
