Product Details:
|
| Name: | 10.1 Inch LCD Display Module | Resolution: | 1024X600 |
|---|---|---|---|
| Outline Dimension: | 235*143*4.9mm | Active Area: | 222.72 X 125.28mm |
| Interface: | LVDS | Display Mode: | Normally White Transmissive |
| Brightness: | 300 Cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 1024x600 LCD Display Module,LCD Display Module 10.1 Inch,40 Pin TFT Display 300 Cd/m2 |
||

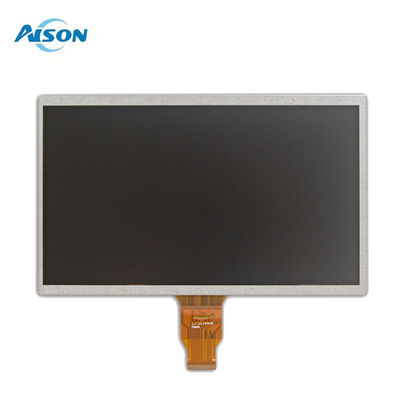

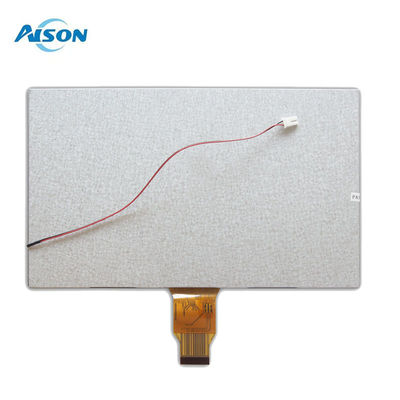

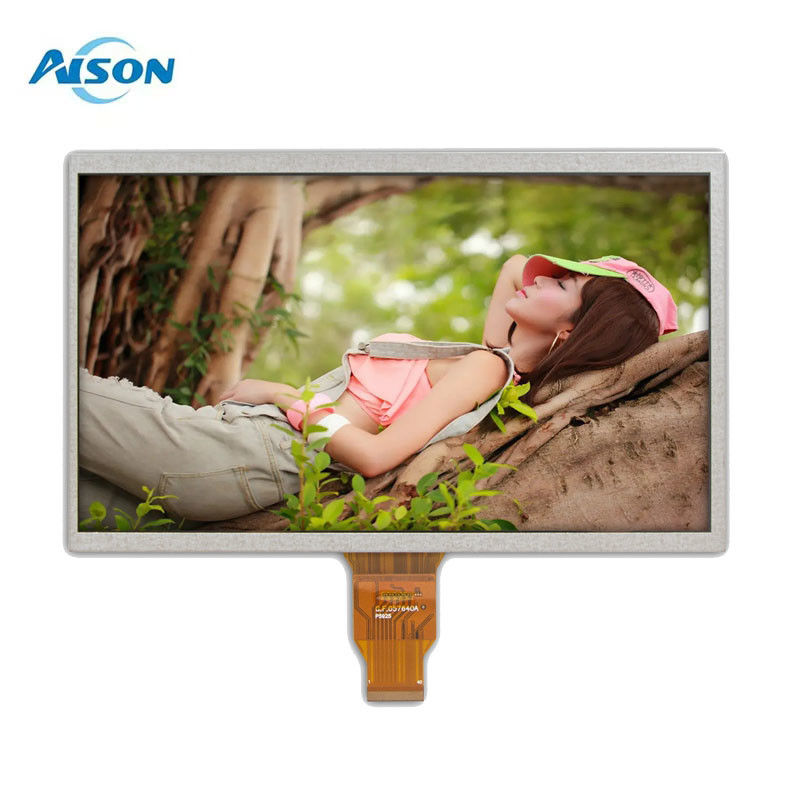

10.1 inch TFT LCD Display Module 1024x600 40 Pin LVDS Interface
Display General Description
Z101WS07 is a 10.1-inch TN TFT LCD module designed for landscape mode operation. It features a resolution of 1024x600 pixels and is equipped with EK79001HN and EK73215BCGA driver ICs. The module supports an LVDS interface, offers a typical contrast ratio of 600:1, and achieves a brightness of 300 nits (typical value). With an aspect ratio of 16:9, anti-glare surface glass, and a normally black display, it operates as a transmissive LCD type.
Compared to TN TFT, this 10.1-inch IPS TFT module provides a wider viewing angle, specifically 12 degrees at the 12 o'clock position. The supply voltage (VDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It is designed to operate within a temperature range of -20℃ to +70℃ and can be stored in temperatures from -30℃ to +80℃, making it suitable for diverse environmental conditions.
General Data
| Model Name | 10.1 inch TFT LCD Display |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm |
235*143*4.9
|
| Display Area (W*H)mm |
222.72 x 125.28
|
| Interface | LVDS |
| Display Mode | Normally White,Transmissive |
| Viewing | 12 o'clock |
| Brightness | 300 cd/m2 |
| Pin number | 40 |
| Viewing Angle | 85/85/85/85 |
| BACKLIGHT TYPE | 36 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
