Product Details:
|
| Product Name: | 8 Inch 1024x768 TFT Display | Resolution: | 1024X768 |
|---|---|---|---|
| Outline Dimension: | 183*141*6.15mm | Active Area: | 162.05*121.54mm |
| Interface: | LVDS | Display Type: | IPS |
| Brightness: | 1000cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 40 Pin 8 Inch LCD Display,8 Inch LCD Display High Brightness,High Brightness LCD Display 1024x768 |
||

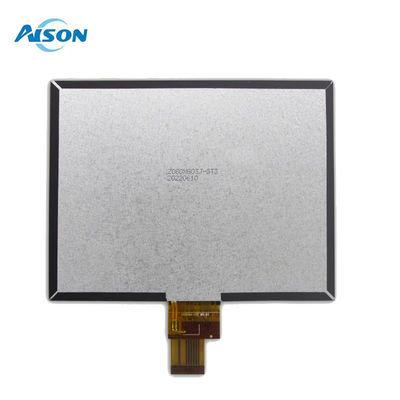

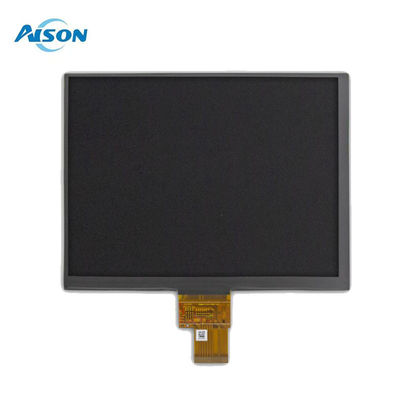

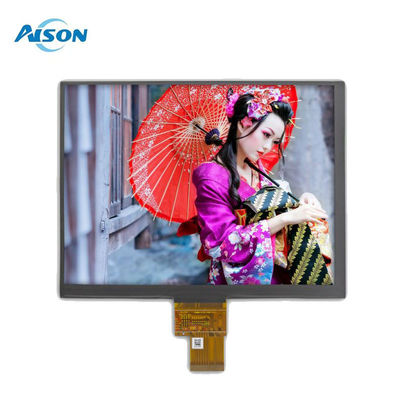

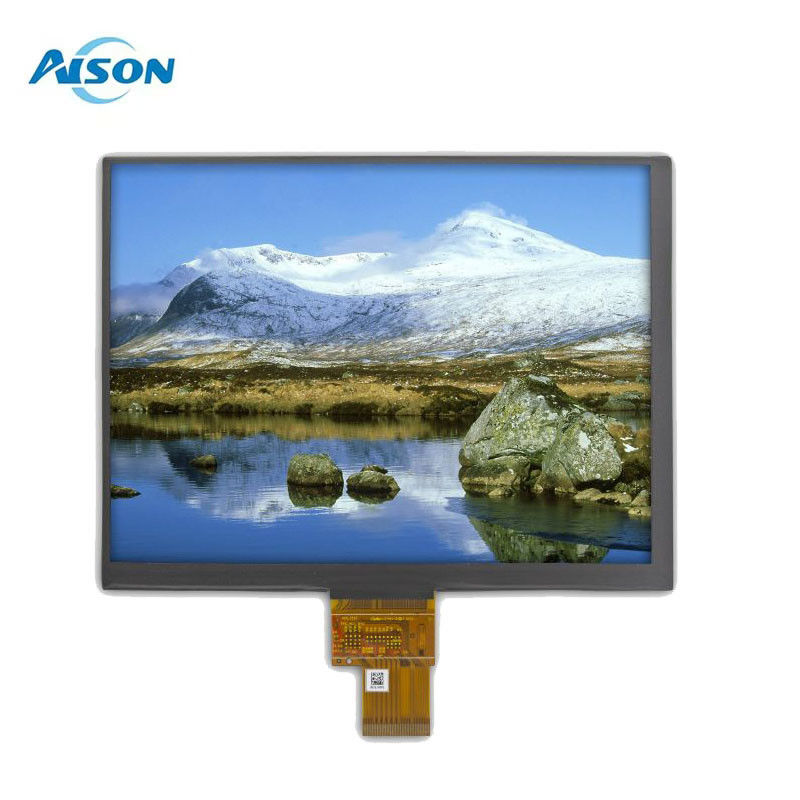

8 Inch 1024x768 TFT LCD Display with LVDS Interface 1000cd/m2
General Description
The Z080XG01J is an 8 inch TFT LCD module with a resolution of 1024x768 pixels, an aspect ratio of 4:3, a brightness of 1000 nits (typical value), and a contrast ratio of 800:1. The module has an active area size of 183*141* mm and an outline dimension of 162.05*121.54mm.
The lcd module can operate within a wide temperature range of -20°C to +70°C. The Z080XG01J is a high-quality TFT LCD display module that offers excellent display performance and durability, making it an ideal choice for a wide range of applications, including industrial control systems, medical devices.
General Data
| Model Name | 8 inch TFT LCD Display |
| Resolution | 1024x768 |
| Model Size (W*H*T)mm | 183*141*6.15 |
| Display Area (W*H)mm | 162.05*121.54 |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 1000 cd/m2 |
| Pin number | 40 |
| Viewing Angle | 85/85/85/85 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
