Product Details:
|
| Name: | 8 Inch TFT Display Module | Resolution: | 800x600 |
|---|---|---|---|
| Outline Dimension: | 183x141x6mm | Active Area: | 162.0(W) × 121.5(H) Mm |
| Interface: | RGB | Display Mode: | Normally White, Transmissive |
| Brightness: | 300cd/m2 | Operating Temperatures: | -20 To 70 Degree |
| Storage Temperatures: | -30 To 80 Degree | ||
| Highlight: | 300 Nits LCD TFT Display Module,LCD TFT Display Module 800x600,800x600 Display 8 Inch |
||

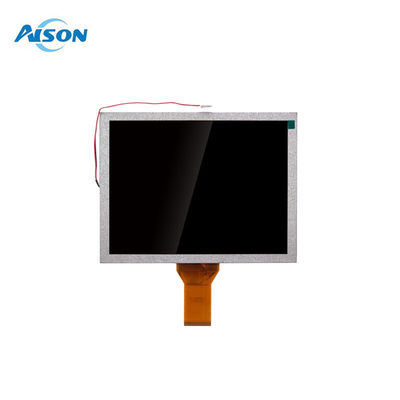

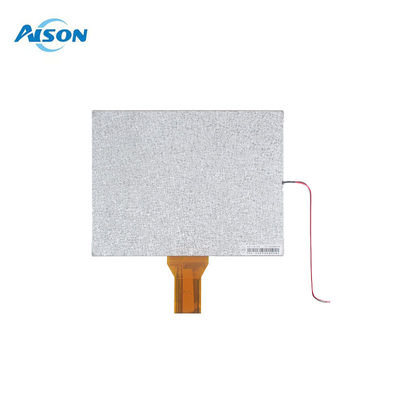

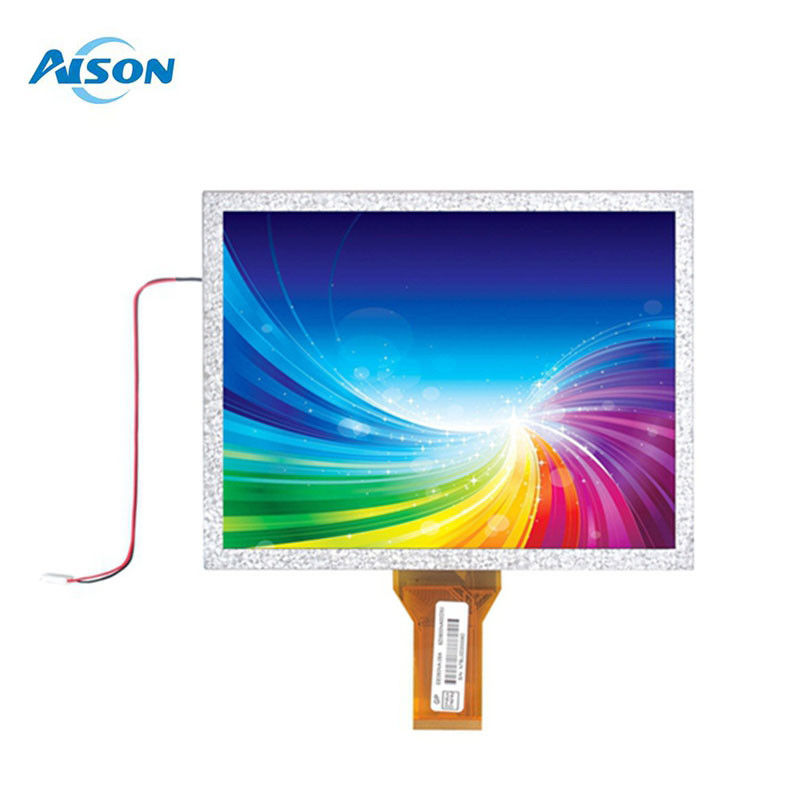

8 inch 800x600 TFT LCD Display Module with 50 Pin RGB Interface
General Description
The EE080NA-05A is an 8 inch TFT LCD display module with a resolution of 800x600 pixels, an aspect ratio of 4:3, a brightness of 300 nits (typical value), and a contrast ratio of 500:1. The module has an active area size of 183x141 mm and an outline dimension of 162.0(W) × 121.5(H
mm.
The lcd module can operate within a wide temperature range of -20°C to +70°C. The EE080NA-05A is a high-quality TFT LCD display module that offers excellent display performance and durability, making it an ideal choice for a wide range of applications, including industrial control systems, medical devices.
General Data
| Model Name | 8 inch TFT LCD Display Module |
| Resolution | 800X600 |
| Model Size (W*H*T)mm | 192.8*116.9*6.4mm |
| Display Area (W*H)mm |
183x141x6mm
|
| Interface | RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 350 cd/m2 |
| Pin number | 50 |
| Viewing Angle | 70/70/50/70 |
| BACKLIGHT TYPE | 24 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
