Product Details:
|
| Product: | 8 Inch TFT Display | Display Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 192.8*116.9*6.4mm | Active Area: | 176.64 X 99.36mm |
| Interface Type: | 24 Bit RGB | Brightness: | 350cd/m2 |
| View Direction: | 12 O'clock | Operating Temp: | -20 To 70 Degree |
| Storage Temp: | -30 To 80 Degree | ||
| Highlight: | 8 Inch TFT Display,TFT Display 800x480,RGB LCD Screen 50 Pin |
||

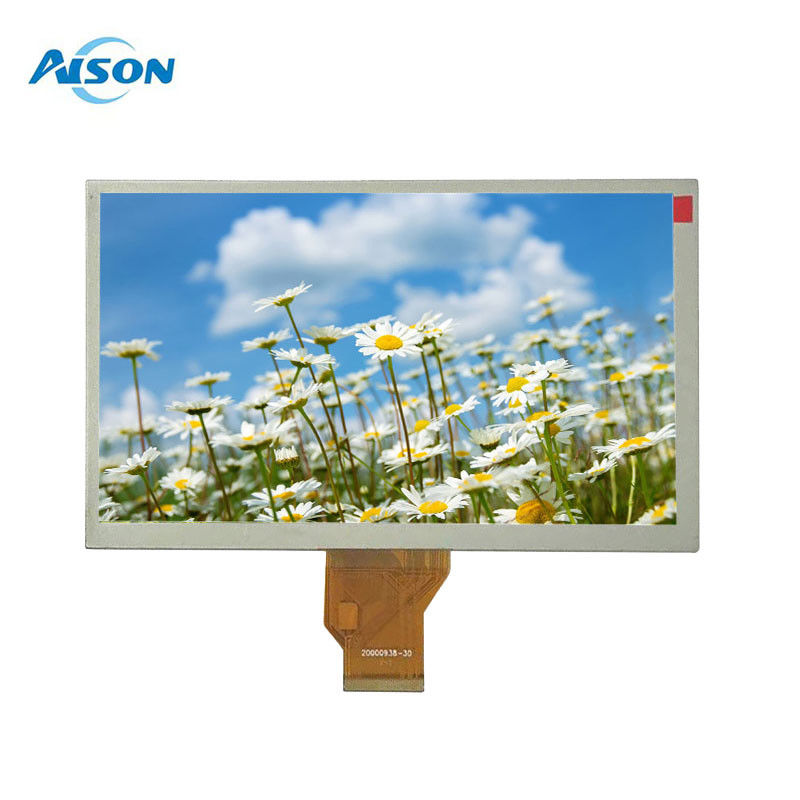

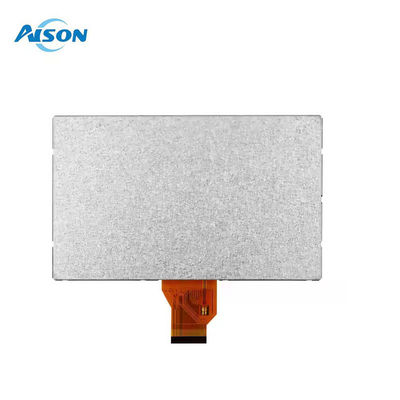

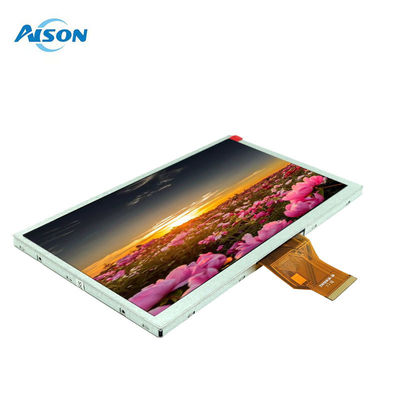

8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display
Display General Description
The Z080TN64 is an 8 inch TFT LCD display module with a resolution of 800x480 pixels, an aspect ratio of 16:9, a brightness of 350 nits (typical value), and a contrast ratio of 500:1. The module has an active area size of 176.64 x 99.36 mm and an outline dimension of 192.80 x 116.90 mm. The display uses EK9713 and EK73002 driver ICs, supporting 24-bit RGB interfaces.
The supply voltage range for the analog is from 3.0V to 3.6V (typical 3.3V), and the module can operate within a wide temperature range of -20°C to +70°C. The Z080TN64 is a high-quality TFT LCD display module that offers excellent display performance and durability, making it an ideal choice for a wide range of applications, including industrial control systems, medical devices.
General Data
| Model Name | 8 inch TFT LCD Display Module |
| Resolution | 800X480 |
| Model Size (W*H*T)mm | 192.8*116.9*6.4mm |
| Display Area (W*H)mm |
176.64 x 99.36mm
|
| Interface | 24 bit RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 350 cd/m2 |
| Pin number | 50 |
| Drive IC | EK9713 + EK73002 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
