Product Details:
|
| Product: | 5.7 Inch Industrial TFT Display | Display Resolution: | 320x240 |
|---|---|---|---|
| Outline Dimension: | 144.00*104.6*13.00mm | Active Area: | 115.20*86.40mm |
| Interface: | 18 Bit RGB | Luminance: | 750cd/m2 |
| Viewing Direction: | 12 O'clock | Driver IC: | HX8218C04+HX8615C |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 750 cd/M2 Industrial TFT Display,Industrial TFT Display 5.7 Inch,LCD Module TFT 320x240 |
||
5.7 inch TFT LCD Display Module 320x240 TN RGB Interface 750cd/m2
Display General Description

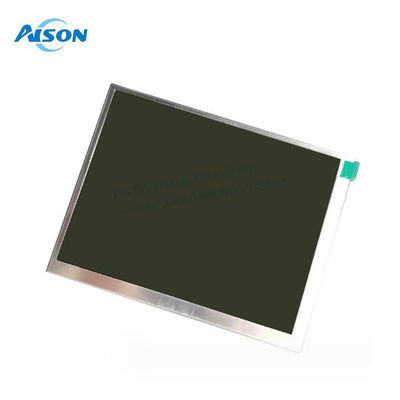

Z057Q01 is a 5.7-inch diagonal 320x240 standard TFT LCD display module. The view direction is 12 o'clock, grayscale inversion is at 6 o'clock, and the aspect ratio is 4:3.
Measuring 144×104.6 mm, with an active area of 115.2×86.40 mm,the TFT display module integrates HX8218 and HX8615 driver ICs, supporting a 18-bit RGB Interface. Its 5.7-inch TFT LCD panel boasts a brightness of 750 cd/m2 and a contrast ratio (typical value) of 300:1. Thanks to its anti-glare display surface, reflections are minimized, ensuring superior image quality.
Operating within a temperature range of -20 to +70℃, and with a storage temperature spanning from -30 to +80℃, this module is built to withstand diverse environmental conditions.
General Data
| Model Name | 5.7 inch TFT LCD Display |
| Resolution | 320x240 |
| Model Size (W*H*T)mm | 144.00*104.6*13.00mm |
| Display Area (W*H)mm | 115.20*86.40mm |
| Interface | 18 bit RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 750 cd/m2 |
| Pin number | 33 |
| Drive IC | HX8218C04+HX8615C |
| BACKLIGHT TYPE | 21-DIES WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Mixing Consoles
Medical Monitoring Equipment
Industrial Equipment Control Panels
