7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display

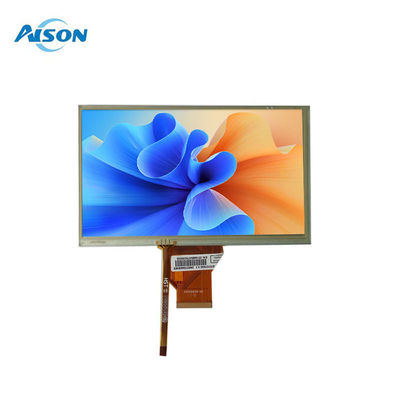

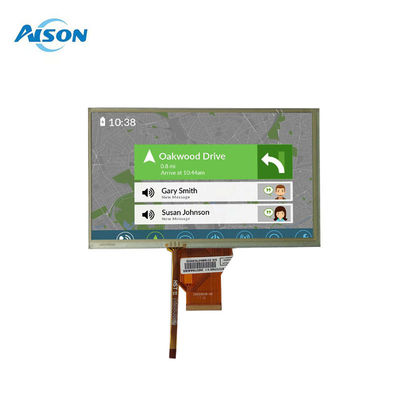

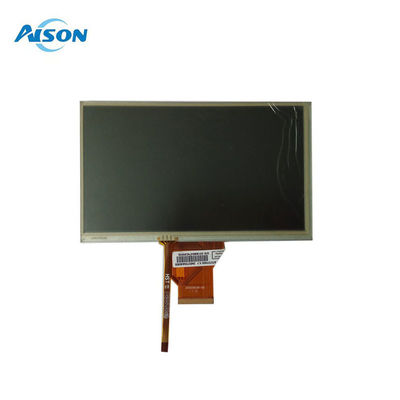

Large Image : 7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z070TN92-T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister Package
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display

Description

Name:	7 Inch TFT Display With RTP	Resolution:	800x480
Outline Dimension:	164.9100.06.9 Mm	Active Area:	154.08 X 85.92mm
Interface:	24 Bit RGB	Brightness:	300 Cd/m2
Operating Temperature:	-20~70℃	Storage Temperature:	-30~80℃
Highlight:	800X480 Resistive Touch Panel , Resistive Touch Panel 7 Inch , Touch Screen Display Module 50 Pin

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display

General Description

The Z070TN92-T is a 7-inch TFT LCD module with a resistive touch panel (RTP) and WVGA resolution of 800x480 pixels. This TFT module incorporates EK79713CA and EK73202AB2 driver ICs and supports a 24-bit RGB interface with a typical brightness of 300 nits.

The supply voltage for logic (VCC) of the Z070TN92-T ranges from 3.0V to 3.6V, with a typical value of 3.3V. It has a viewing direction of 12 o'clock, gray scale inversion at 6 o'clock, and an aspect ratio of 16:9. The contrast ratio is 800:1 (typical value). The module operates within a temperature range of -20°C to +70°C and can be stored at temperatures from -30°C to +80°C.

This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.

General Data

Model Name	7 inch RTP TFT LCD Display
Resolution	800(RGB)480
Model Size (WHT)mm	164.91006.9 mm
Display Area (W*H)mm	154.08 x 85.92mm
Interface	RGB
Display Type	Normally White TN,Transmissive
Viewing	12:00 o'clock
Brightness	300 cd/m2
Pin number	50
Interface	RGB
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display 0

Product Details

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display 1

TFT Applications:

This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.

7 Inch 800X480 Resistive Touch Panel 50 Pin RGB 24 Bit 7 inch RTP Display 3
