Product Details:
|
| Name: | 7 Inch Resistive Touch Display | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 164.9*100*6.9mm | Active Area: | 154.08 X 85.92mm |
| Interface: | 24 Bit RGB | Brightness: | 300 Cd/m2 |
| Display Mode: | Normally White | Touch Screen: | Resistive Touch Panel (RTP) |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 300nits Resistive Touch Screen Display,Resistive Touch Screen Display 40 Pin,Industrial Touch Screen Panel 7 Inch |
||

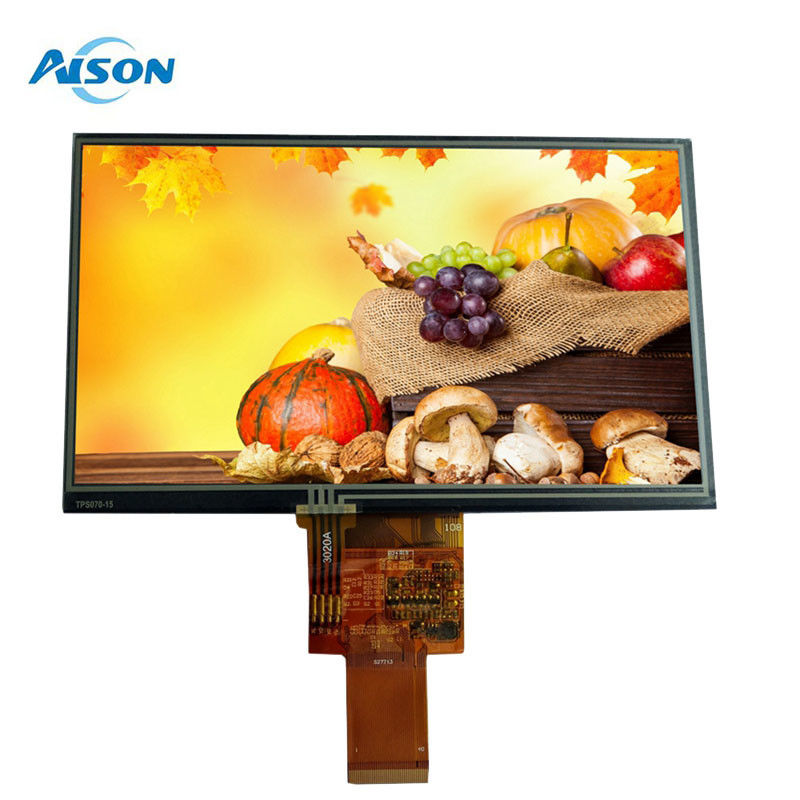

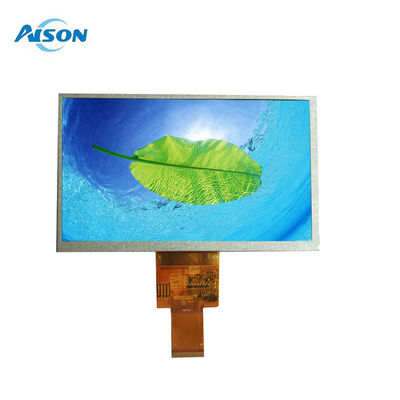

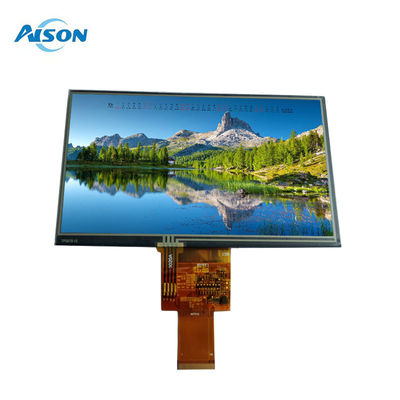

7 inch Resistive Touch TFT LCD Display 800x480 RGB 40 Pin Interface
Introducing the Z070WV01-T, a cutting-edge 7 inch TFT Display designed to deliver exceptional performance and versatility. This 7 inch resistive touch screen, offering a seamless combination of clarity and interactivity. With a WVGA resolution of 800x480 pixels, the display provides sharp and vibrant visuals on its 7-inch TFT-LCD screen.
The Z070WV01-T is powered by HX8264-D and HX8664-B driver ICs and is compatible with a 24-bit RGB interface, ensuring high-quality image rendering. It features a typical brightness of 300 nits, delivering clear visibility in various lighting conditions. The module operates within a supply voltage range of 3.0V to 3.6V, with a typical value of 3.3V, making it adaptable to different power configurations.
With a viewing direction of 12 o'clock and gray scale inversion at 6 o'clock, the 7 inch touch display Z070WV01-T offers a 16:9 aspect ratio, providing a balanced and immersive display experience. Its contrast ratio of 800:1 (typical value) ensures vivid colors and sharp details. The module is designed to operate within a temperature range of -20°C to +70°C and can be stored at temperatures from -30°C to +80°C, making it suitable for diverse environmental conditions.
This 7 inch TFT Display is a versatile solution for a wide range of applications, including embedded systems, medical instruments, GPS navigation, surveillance systems, and industrial control products. Its compact design, advanced functionality, and robust performance make it an ideal choice for developers and manufacturers seeking a reliable and high-quality display solution.
General Data
| Model Name | 7 inch Resistive Touch TFT LCD Display |
| Resolution | 800*(RGB)*480 |
| Model Size (W*H*T)mm | 164.9*100*6.9mm |
| Display Area (W*H)mm | 154.08 x 85.92mm |
| Interface | RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 300 cd/m2 |
| Pin number | 40 pin |
| Touch | With Resistive Touch |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.
