7" RTP TFT Display 800X480 Resolution RGB Interface 40 Pin for Industrial Application

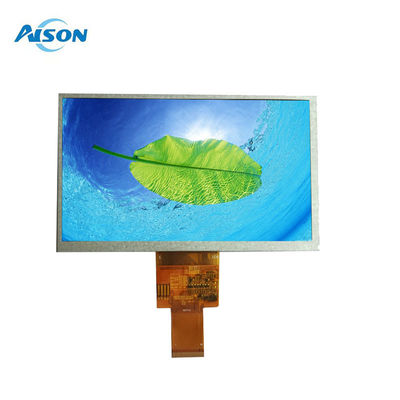

Large Image : 7" RTP TFT Display 800X480 Resolution RGB Interface 40 Pin for Industrial Application

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z070WV01-T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister Package
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

7" RTP TFT Display 800X480 Resolution RGB Interface 40 Pin for Industrial Application

Description

Ite:	7 Inch TFT Resistive Touch Screen	Resolution:	800x480
Outline Dimension:	164.91006.9mm	Active Area:	154.08 X 85.92mm
Interface Type:	24 Bit RGB	Luminance:	300 Cd/m2
Display Mode:	TFT,Normally White	Operating Temperatures:	-20 To 70 Degree
Storage Temperatures:	-30 To 80 Degree	Touch:	Resistive Touch Screen
Highlight:	300 Cd/M2 TFT Resistive Touch Screen , TFT Resistive Touch Screen Transmissive , Industrial Touchscreen Display 40Pin

7" RTP TFT Display 800X480 Resolution RGB Interface 40 Pin for Industrial Application

General Description

The Z070WV01-T is a 7-inch TFT LCD module featuring a resistive touch panel (RTP) and a WVGA resolution of 800x480 pixels. This TFT module integrates HX8264-D and HX8664-B driver ICs and supports a 24-bit RGB interface with a typical brightness of 300 nits. The logic supply voltage (VCC) for the Z070WV01-T ranges from 3.0V to 3.6V, with a typical value of 3.3V.

The module features a 12 o'clock viewing direction, grayscale inversion at 6 o'clock, and an aspect ratio of 16:9. It offers a contrast ratio of 800:1 (typical value) and operates within a temperature range of -20°C to +70°C. The module can also be stored at temperatures ranging from -30°C to +80°C.

The Z070WV01-T is designed for a wide range of applications, including embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.

General Data

Model Name	7 inch RTP TFT Display
Resolution	800(RGB)480
Model Size (WHT)mm	164.91006.9mm
Display Area (W*H)mm	154.08 x 85.92mm
Interface	RGB
Display Mode	Normally White TN,Transmissive
Viewing	12:00 o'clock
Brightness	300 cd/m2
Pin number	40 pin
Touch	with RTP
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

7" RTP TFT Display 800X480 Resolution RGB Interface 40 Pin for Industrial Application 0

Product Details

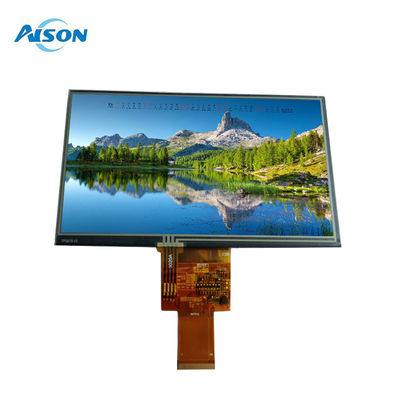

7" RTP TFT Display 800X480 Resolution RGB Interface 40 Pin for Industrial Application 1

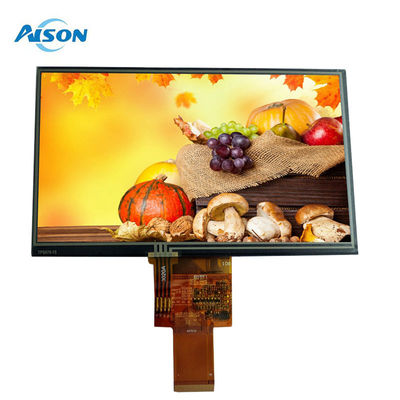

7" RTP TFT Display 800X480 Resolution RGB Interface 40 Pin for Industrial Application 3

TFT Applications:

This product has a wide range of applications and is suitable for use in embedded systems, medical instruments, GPS navigation, surveillance systems, and various industrial control products.

7" RTP TFT Display 800X480 Resolution RGB Interface 40 Pin for Industrial Application 4
