Product Details:
|
| Product: | 7 Inch 800x480 TFT Display Module | Display Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 164.9*100*7.1mm | Active Area: | 154.08 X 85.92mm |
| Interface Type: | 24 Bit RGB | View Direction: | 12 O'clock |
| Operating Temp: | -20 To 70 Degree | Storage Temp: | -30 To 80 Degree |
| Highlight: | 7 Inch Display Module,Display Module Transmissive,Capacitive TFT Touch Screen 800x480 |
||

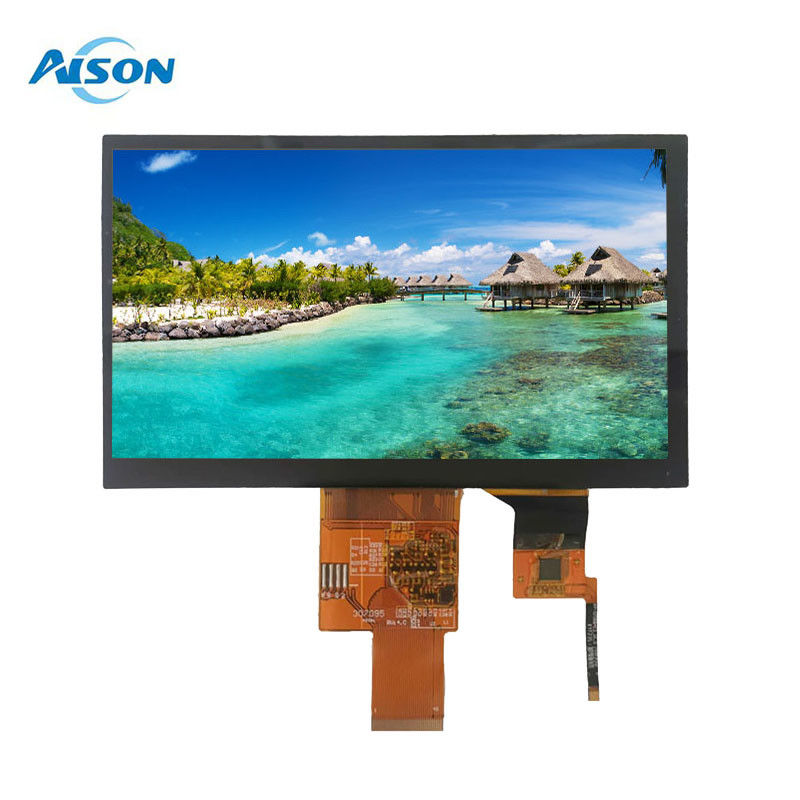

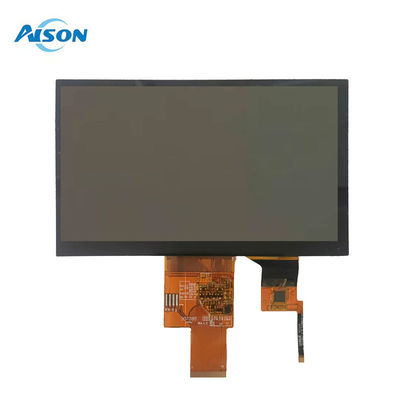

LCD Display 7 inch TFT LCD Display Module with RGB 40 Pin Captouch Panel

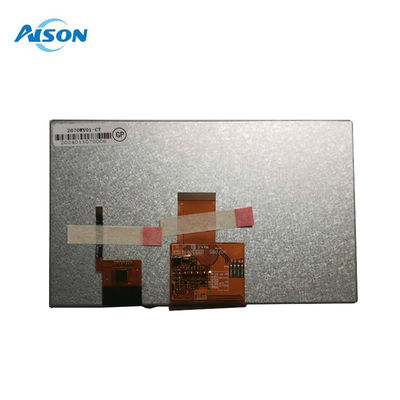

The Z070WV01-CT is a high-performance 7-inch TFT LCD module featuring a Projected Capacitive Touch Panel (PCAP) with a resolution of 800x480 pixels. Equipped with the EK79713CA and EK73202AB2 driver ICs, this LCD module supports a 24-bit RGB interface and includes a DC-to-DC function for efficient power management. It offers an impressive contrast ratio of 800:1 (typical) and a brightness of 400 nits (typical), ensuring vivid and clear display quality. The aspect ratio is 16:9, and it features a normally white, transmissive LCD type with a viewing direction of 12H and grayscale inversion direction of 6H.
The integrated Projected Capacitive Touch Panel is powered by the GT911 IC, which supports an I2C interface for seamless communication. The module operates on a logic supply voltage (VCC) ranging from 3.0V to 3.6V, with a typical value of 3.3V. Designed for reliable performance, the Z070WV01-CT operates within a temperature range of -20℃ to +70℃ and can be stored in temperatures from -30℃ to +80℃, making it suitable for a wide range of applications.
General Data
| Model Name | 7 inch TFT Display with touch screen |
| Resolution | 800*(RGB)*480 |
| Model Size (W*H*T)mm | 164.9*100*7.1mm |
| Display Area (W*H)mm | 154.08 x 85.92mm |
| Interface | RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 400 cd/m2 |
| Pin number | 40 pin |
| Interface | RGB 24 bit |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
The 7 inch tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
