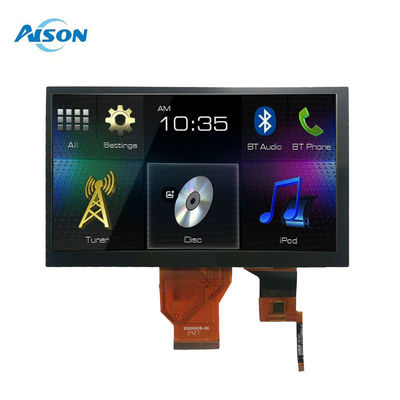

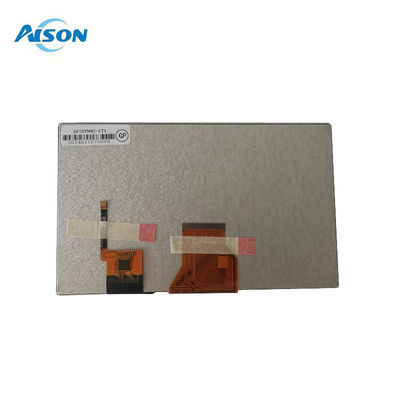

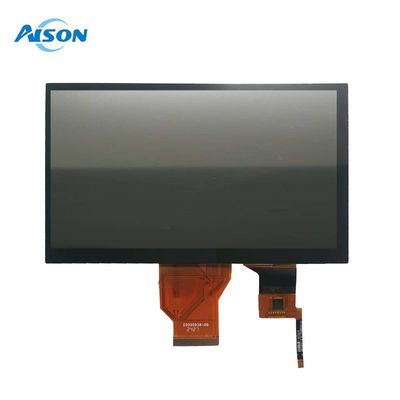

7 Inch TFT Touch Screen 50 Pin Capacitive Touch Screen Display 800x480 RGB 400cd/m2

Large Image : 7 Inch TFT Touch Screen 50 Pin Capacitive Touch Screen Display 800x480 RGB 400cd/m2

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	AISON
Certification:	ISO9001 / ISO14000/ROHS
Model Number:	Z070TN92-CT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable based on quantity
Packaging Details:	Carton/Blister Package
Delivery Time:	7 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	200k/month

Contact Now

7 Inch TFT Touch Screen 50 Pin Capacitive Touch Screen Display 800x480 RGB 400cd/m2

Description

Name:	TFT Touch Screen	Resolution:	800x480
Outline Dimension:	164.9100.07.25mm	Active Area:	154.08 X 85.92mm
Interface:	24 Bit RGB	Brightness:	400cd/m2
LCD Type:	Normally White TN,Transmissive	Gray Scale Inversion Direction:	6 O’clock
Highlight:	7 Inch TFT Touch Screen , TFT Touch Screen 50 Pin , Capacitive Touch Screen Display 800x480

7 inch TFT Display with Capacitive Touch Screen 800x480 RGB 50 Pin 400cd/m2

General Description

TFT 7.0” is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

General Data

Model Name	7 inch TFT Display with touch screen
Resolution	800(RGB)480
Model Size (WHT)mm	164.91007.25mm
Display Area (W*H)mm	154.08 x 85.92mm
Interface	RGB
Display Type	Normally White TN,Transmissive
Viewing	12:00 o'clock
Brightness	400 cd/m2
Pin number	50
Interface	RGB
Operating temperatures	-20 to 70 degree
Storage temperatures	-30 to 80 degree

Drawing

7 Inch TFT Touch Screen 50 Pin Capacitive Touch Screen Display 800x480 RGB 400cd/m2 0

Product Details

7 Inch TFT Touch Screen 50 Pin Capacitive Touch Screen Display 800x480 RGB 400cd/m2 1

TFT Applications

These tft displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

7 Inch TFT Touch Screen 50 Pin Capacitive Touch Screen Display 800x480 RGB 400cd/m2 3
