Product Details:
|
| Name: | 5 Inch IPS TFT LCD Display | Resolution: | 800x480 |
|---|---|---|---|
| Outline Dimension: | 120.7*75.8*2.9 Mm | Active Area: | 108x64.8 Mm |
| Interface: | 24 Bit RGB | Brightness: | 500 Cd/m2 |
| Driver IC: | ST7265 | Operating Temperatures: | -30 To 80 Degree |
| Highlight: | 40 Pin IPS TFT LCD Display,IPS TFT LCD Display Customized,Automotive LCD Screen 5 Inch |
||

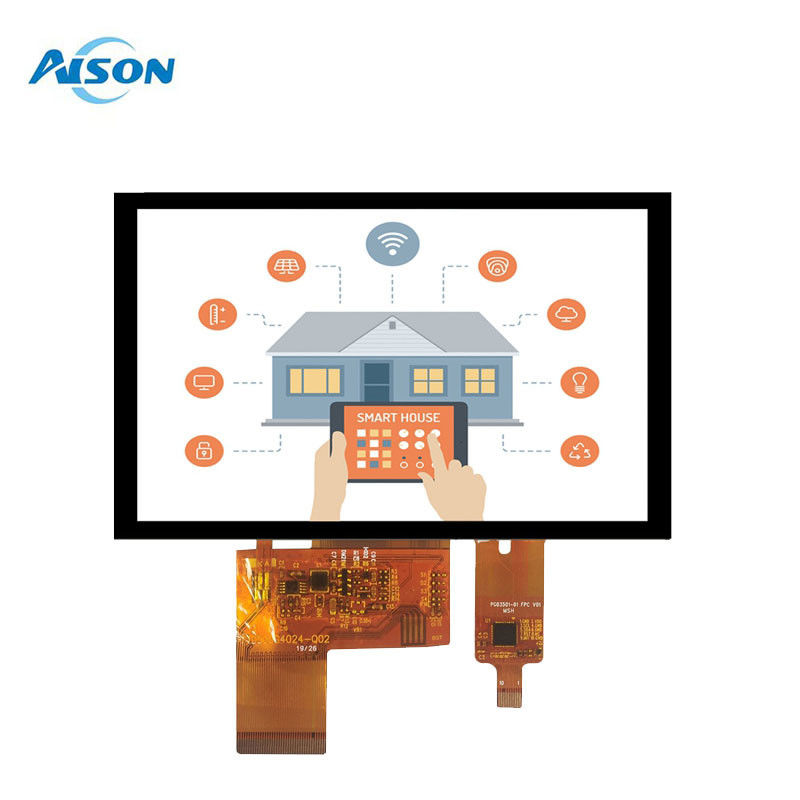

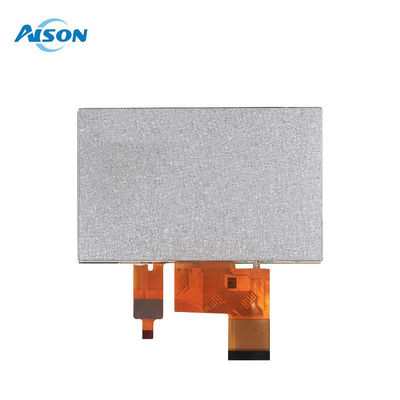

5 Inch IPS TFT Display Customized Automotive LCD Screen RGB Interface
The AISON Z050WV20 is a high-quality 5-inch IPS TFT LCD module designed to deliver exceptional visual performance. Featuring an 800x480 RGB pixel resolution on a sleek black background, this lcd module ensures vibrant and clear images. With a brightness of 500 cd/m², it provides excellent visibility in various lighting conditions, offering optimal viewing comfort for users.
This 5 inch IPS tft module is powered by the reliable ST7265 driver IC and supports a 24-bit RGB interface, guaranteeing consistent and dependable performance. Its extensive compatibility with a wide range of microcontrollers (MCUs), including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, makes it suitable for diverse applications such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.
To simplify integration, the 5 inch IPS Display Z050WV20 is designed for seamless connectivity. It features a 40-pin Flexible Printed Circuit (FPC) and FPC-connector mode, enabling easy and reliable connections to your PCB's ZIF connector. This eliminates the need for complex wiring, saving valuable time during the integration process.
AISON Technology offers tailored solutions to meet specific customer needs. Customers can customize the FPC, integrate cover lenses, add touchscreens, or even customize driver boards. Additionally, upon request, AISON can provide customized demo kits to assist in evaluation and decision-making.
With its superior performance, extensive compatibility, and flexible customization options, the 5 inch TFT-LCD is a versatile and reliable display solution. Making it an ideal choice for a wide range of applications.
General Data
| Product Name | 5 Inch IPS TFT LCD Module |
| Number of Pixel | 800x480 |
| Interface | RGB 24bit |
| Luminance(cd/m2) | 500cd/m2 |
| Active area |
120.7*75.8*2.9 mm
|
| LCM (W x H x D) |
108x64.8 mm
|
| Viewing Direction(eye) | IPS/ALL |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
The 5 inch IPS 800x480 TFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
