Product Details:
|
| Name: | 7 Inch Automotive LCD Display | Resolution: | 800X480 |
|---|---|---|---|
| Outline Dimension: | 165.4*104.59*9.5mm | Active Area: | 152.4 X 91.44mm |
| Interface: | LVDS | Brightness: | 500cd/m2 |
| Display Mode: | Normally Black | Operating Temp: | -30 To 85 Degree |
| Storage Temp: | -40 To 90 Degree | ||
| Highlight: | 7 Inch TFT Screen,TFT Screen 800x480,Automotive LCD Display 500 Cd/M2 |
||
7 inch Industrial TFT Display 800x480 LVDS IPS Automotive Display -40 to 95 degree

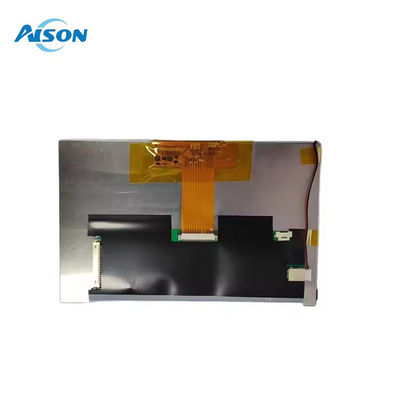

The Z070WV29, a robust 7.0-inch diagonal a-Si TFT-LCD display panel from Aison. This industrial-grade display features an integrated WLED backlight system with an embedded LED driver, delivering reliable performance without the need for a touchscreen.
Key Specifications:
Application Recommendations: The 7 inch TFT Display Module Z070WV29 is ideally suited for industrial and automotive applications where wide temperature operation, high vibration resistance, and long lifespan are critical requirements.
This product combines durability, versatility, and high reliability, making it an excellent choice for demanding environments.
General Data
| Model Name | 7 inch Industrial TFT Display |
| Resolution | 800x480 |
| Model Size (W*H*T) | 165.4*104.59*9.5mm |
| Display Area (W*H) | 152.4 x 91.44mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 500 cd/m2 |
| Pin number | 20 pin |
| Driver IC | SC7283 |
| Operating temperatures | -30 to 85 ℃ |
| Storage temperatures | -40 to 95 ℃ |
Drawing
Product Details
TFT Applications
This 7 inch tft display features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C ,Based on its features, recommend that this model be applied to Industrial, Automotive Display etc.
