Product Details:
|
| Name: | 4.3 Inch TFT Resistive Touch Screen | Resolution: | 480x272 |
|---|---|---|---|
| Outline Dimension: | 105.5*67.2*4.2mm | Active Area: | 95.04 X 53.856mm |
| Interface: | 24 Bit RGB | Viewing Angle: | 50/70/70/70 |
| Brightness: | 350cd/m2 | Display Mode: | TFT,Normally White |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Touch Panel: | Resistive Touch | ||
| Highlight: | 40 Pin TFT Resistive Touch Screen,TFT Resistive Touch Screen 480x272,Resistive Touchscreen 4.3 Inch |
||

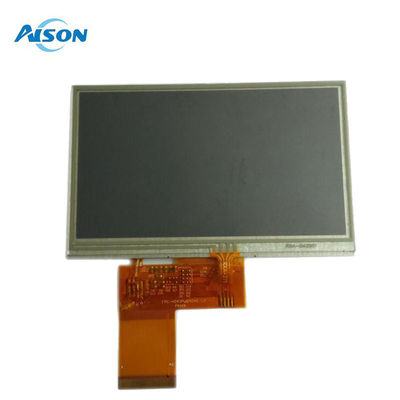

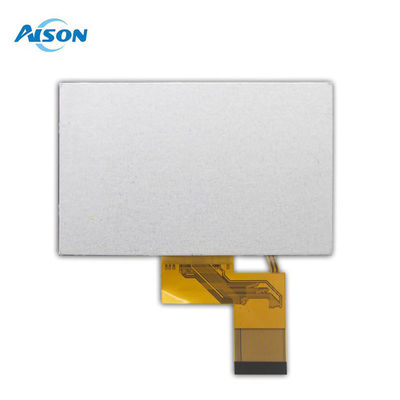

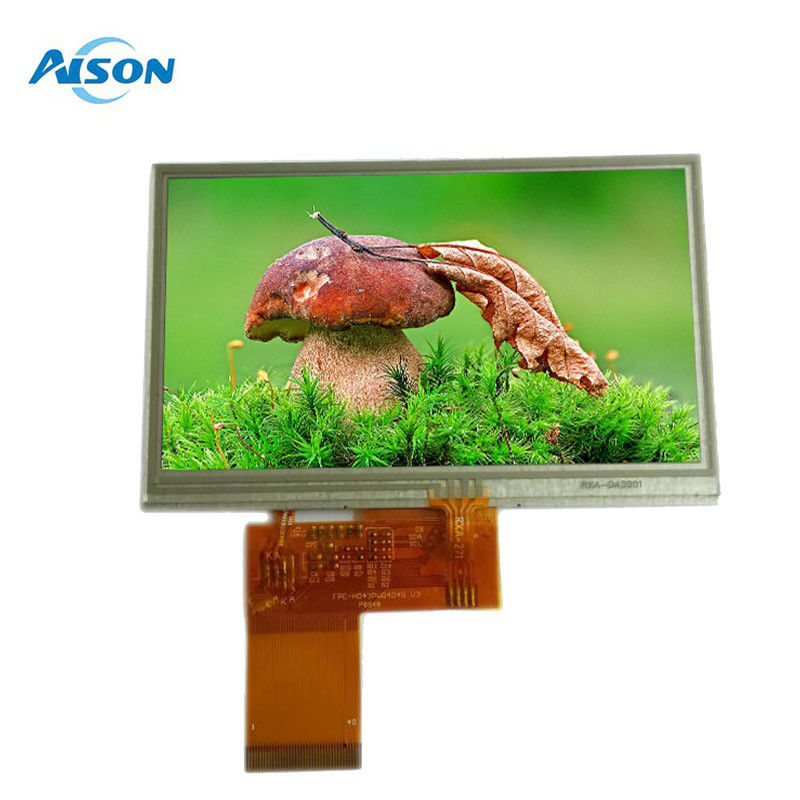

4.3 inch TFT Resistive Touch Screen 480x272 RTP TFT Display Module
Introducing the AISON Z043WQ19-T 4.3" TFT LCD Module: a compact, high-performance display solution designed for versatility and reliability. Featuring a vibrant 480x272 pixel resolution, this module combines a 16:9 aspect ratio with a resistive touch panel, delivering an exceptional visual experience. Its sleek design measures 105.5 x 67.2 mm, with an active display area of 95.04 x 53.86 mm, ensuring ample space for diverse applications.
Equipped with the ST7282 IC and a 24-bit RGB interface, this module offers smooth color reproduction and seamless integration. With a brightness of 350 nits and a contrast ratio of 500:1, it ensures clear visibility in various lighting conditions. Designed for efficiency, it operates on a supply voltage of 3.0V to 3.5V (typical 3.3V), making it ideal for power-sensitive applications.
Built to withstand harsh environments, this module operates between -20℃ and +70℃, with storage capabilities from -30℃ to +80℃. Whether for portable devices, automotive systems, industrial equipment, or safety applications, the Z043WQ19-T is a robust and flexible choice.
For more information on this AISON hot sale 4.3" TFT Module, contact us today to explore how it can enhance your project.
General Data
| Product Name | 4.3 inch RTP TFT LCD Display |
| Number of Pixel | 480x272 |
| Interface | RGB 24bit |
| Luminance(cd/m2) | 350 cd/m2 |
| Active area |
95.04 x 53.856 mm
|
| LCM (W x H x D) |
105.5*67.2*4.2mm
|
| Viewing Direction(eye) | 12 O'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
AISON TFT LCD Displays are suitable for various applications.This 4.3 inch 480x272 tft displays can used for portable electronic devices, automotive entertainment systems, household electronics, industrial equipment and instrumentation, safety systems, and more.
