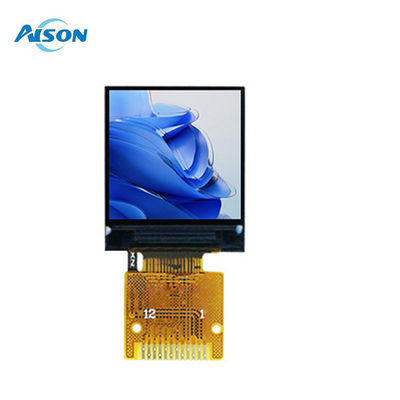

0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107

0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107
0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107
0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107

Large Image :  0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z0085QC01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton/Blister Package
Delivery Time: 7 days
Payment Terms: T/T,Western Union,MoneyGram,Paypal
Supply Ability: 300k/month
Contact Now

0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107

Description
Name: 0.85 Inch Mini LCD Module Resolution: 128x128
Outline Dimension: 17.58*20.82*1.5mm Active Area: 15.21*15.21mm
Interface: 4 Wire SPI Viewing Angle: 85/85/85/85
Brightness: 300cd/m2 Display Mode: Normally Black
Viewing Direction: ALL/IPS Operating Temperatures: -20 To 70 Degree
Storage Temperatures: -30 To 80 Degree Driver IC: GC9107
Highlight:

Square Mini LCD Module

,

Mini LCD Module 128x128

,

128x128 TFT Display 0.85 Inch

0.85 inch 128x128 Square Mini LCD Module 4-wire SPI Interface Drive IC GC9107



General Description
The Z0085QC01 is a compact 0.85-inch IPS TFT LCD module that boasts a vibrant color display. Manufactured by Aison, this module features a resolution of 128x128 RGB pixels on a black background, offering an appealing visual experience. With a typical brightness of 300cd/m2, it ensures clear visibility even in different lighting conditions. The module is powered by the GC9107 driver IC and supports the 4-wire SPI interface, guaranteeing reliable performance.

What sets the Z0085QC01 apart is its compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for an extensive range of applications, such as embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, and handheld devices.

To simplify the integration process, the module's Flexible Printed Circuit (FPC) is designed for soldering directly onto your PCB. This eliminates the need for a separate connector, ensuring a secure and hassle-free connection.


Aison Technology the manufacturer of the Z0085QC01, offers customization options to meet specific requirements. They provide tailored solutions such as customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that aligns perfectly with their unique needs and preferences. Additionally,Aison can provide customized demo kits if requested by customers.





General Data

Product: 0.85 inch lcd module
Resolution: 128x128
Active area 15.21*15.21mm
Outline Dimension 17.58*20.82*1.5mm
Driver IC: GC9107
Viewing Direction: IPS
Pin Number: 12 Pins
Surface Luminance: 300 cd/m2
Interface: 4-wire SPI
Operation Temperature -20~70℃
Storage Temperature -30~80℃
Connection: Soldering




Drawing

0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 0

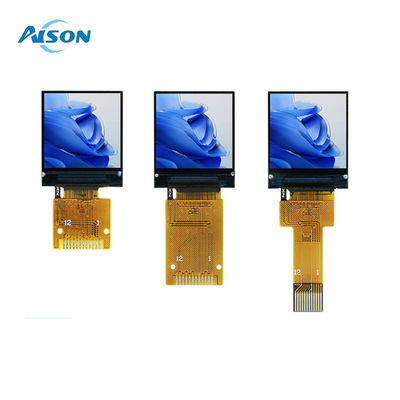

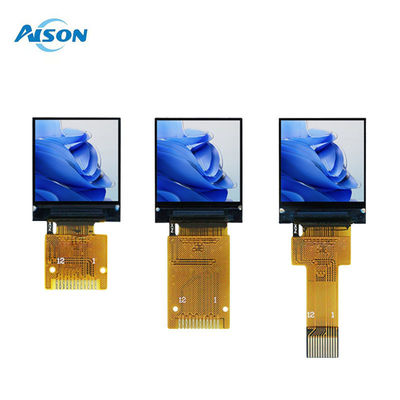

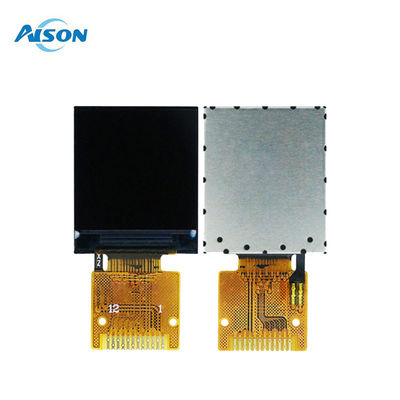

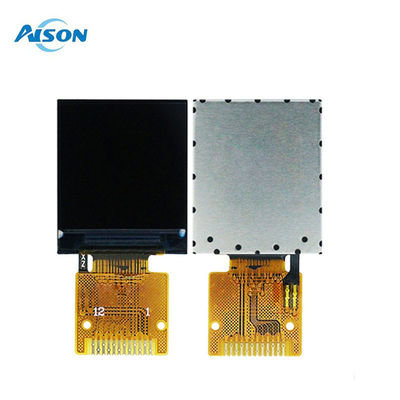

Product Details

0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 10.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 20.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 3





TFT Applications



0.85'' Square Mini LCD Module 128x128 TFT Display 0.85 Inch 4-Wire SPI Interface Drive IC GC9107 4
