Product Details:
|
| Name: | 7 Inch 1024X60 HDMI Capacitive Touch Screen | Resolution: | 1024x600 |
|---|---|---|---|
| Outline Dimension: | 164.9*122.96*13.2mm | Active Area: | 154.08x85.92mm |
| Interface: | HDMI&USB | Viewing Angle: | 85/85/85/85 |
| Brightness: | 450cd/m2 | Display Mode: | Normally Black |
| Viewing Direction: | ALL/IPS | Operating Temperatures: | -20 To 70 Degree |
| Highlight: | 7 Inch Capacitive Touch Screen,Capacitive Touch Screen Transmissive,Raspberry Pi LCD Screen 1024x600 |
||

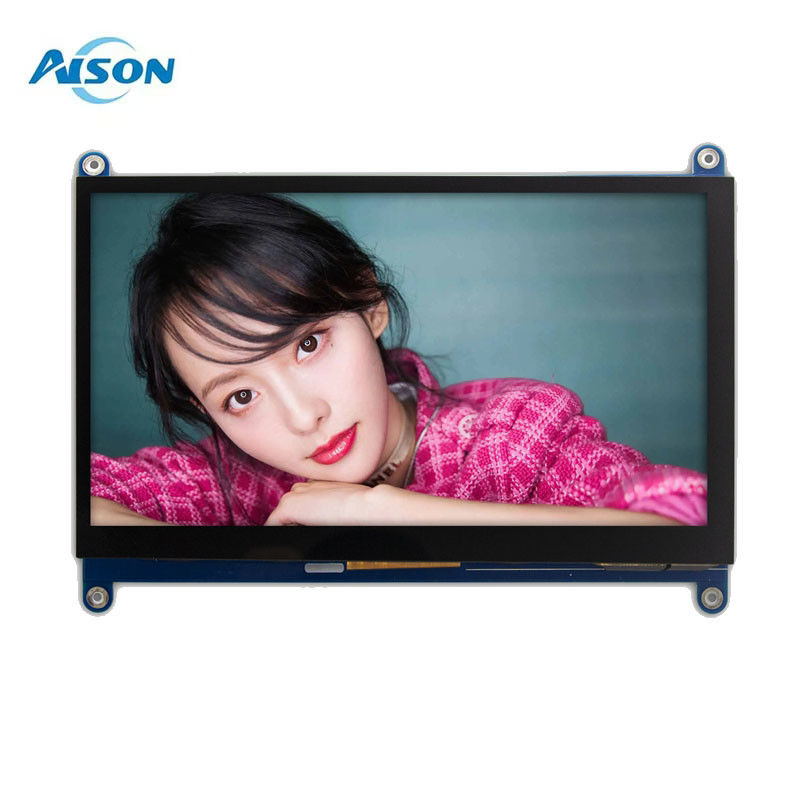

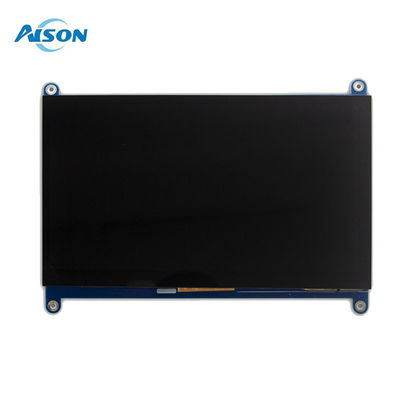

7 inch 1024x600 TFT LCD Raspberry Pi Capacitive Touch Screen Display Module IPS Raspberry Pi 4 3 Display
General Description

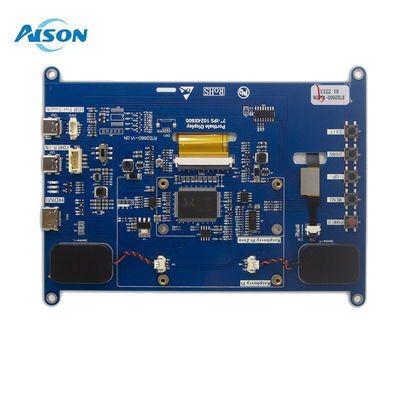

RTD2660-V1.0N is a 7.0inch LCD display driver board; supports HDMI input;supports I2S digital audio signal input and speaker output; Support 4-wire resistive touch panel or 6-wire capacitive touch panel.( This function can onlybe selected from two )
General Spec
| Model Name | 7 inch HDMI TFT Display with touch screen |
| Resolution | 1024X600 |
| Model Size (W*H*T)mm | 164.9*122.96*13.2 |
| Display Area (W*H)mm | 154.08x85.92 |
| Interface | HDMI &USB |
| Display Mode | Normally Black,Transmissive |
| Viewing | All/IPS |
| Brightness | 450 cd/m2 |
| Pin | 50 |
| Touch | Captouch |

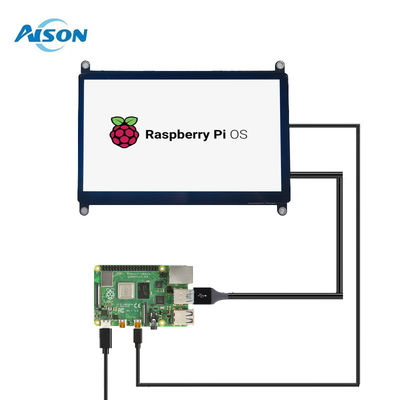

| Application | For Raspberry Pi |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
