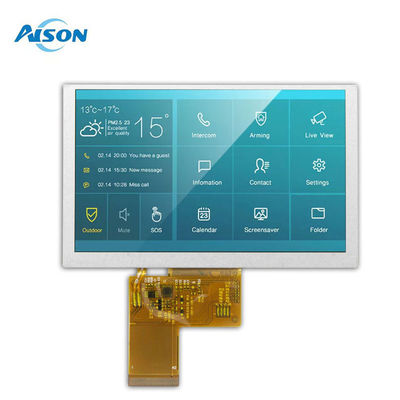

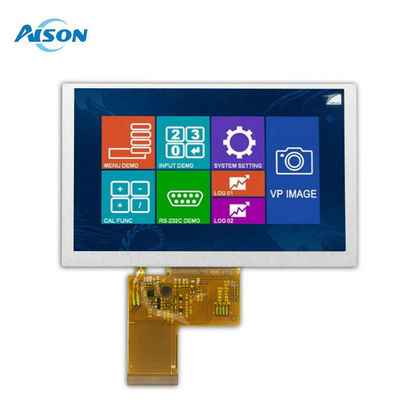

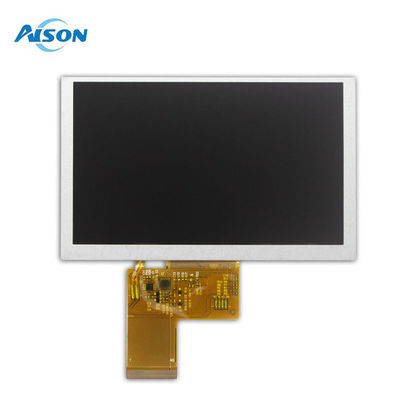

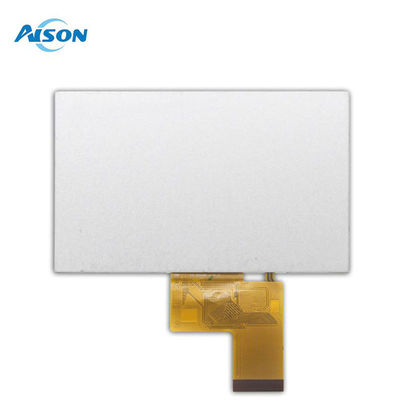

5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface

5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface
5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface
5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface 5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface 5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface 5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface 5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface

Large Image :  5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface

Product Details:
Place of Origin: Guangdong,China
Brand Name: AISON
Certification: ISO9001 / ISO14000/ROHS
Model Number: Z050WV20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Blister Package/Carton
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 200k/month
Contact Now

5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface

Description
Name: IPS LCD Display Module Resolution: 800x480
Outline Dimension: 120.7*75.8*2.9mm Active Area: 108 X 64.80 Mm
Interface: RGB Brightness: 500cd/m2
Display Mode: Normally Black Viewing Direction: ALL/IPS
Operating Temperatures: -30 To 80 Degree Storage Temperatures: -35 To 85 Degree
Highlight:

5 Inch IPS LCD Display Module

,

IPS LCD Display Module 800x480

,

Industrial Display Module 40 Pin

5 inch 800x480 IPS TFT LCD Module with RGB Interface 40 Pin





Display General Description

Z050WV20 is a 5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels. Z050WV20 module is built in with ST7265 driver IC; it supports 24 bit RGB interface, contrast ratio 1000 (typical value). The brightness of Z050WV20 is 500 nits (typical value).

This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). The supply voltage of Z050WV20 model is from 3.1 to 3.6V, aspect ratio 5:3, normally black, transmissive LCD type, Anti-glare surface glass. It can be operating at wide temperatures from -30℃ to +80℃ and storage temperatures from -35℃ to +85℃.





General Data

Product Name 5 Inch IPS TFT LCD Module
Number of Pixel 800x480
Interface RGB 24bit
Luminance(cd/m2) 500cd/m2
Active area
120.7*75.8*2.9 mm
LCM (W x H x D)
108x64.8 mm
Viewing Direction(eye) IPS/ALL
Operating temperatures -30 to 80 degree
Storage temperatures -35 to 85 degree





Drawing


5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface 0



Product Details



5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface 15 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface 2





TFT Applications

The 5 inch IPS 800x480 TFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.

5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface 3

Tag:

Industrial Display Screen,

Industrial LCD Display,

Industrial Display Module
