Product Details:
|
| Item: | 3.5 Inch TFT LCD Display | Resolution: | 320x240 |
|---|---|---|---|
| Outline Dimension: | 76.90*63.9*3.26mm | Active Area: | 70.08 X 52.56mm |
| Interface Type: | RGB/MCU | Brightness: | 350cd/m2 |
| View Direction: | 12 O'clock | Driver Controller: | SSD2119 |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Touch Panel: | RTP/CTP | ||
| Highlight: | 3.5 Inch TFT LCD Display,TFT LCD Display 60 Pin,RGB LCD Display 320x240 |
||

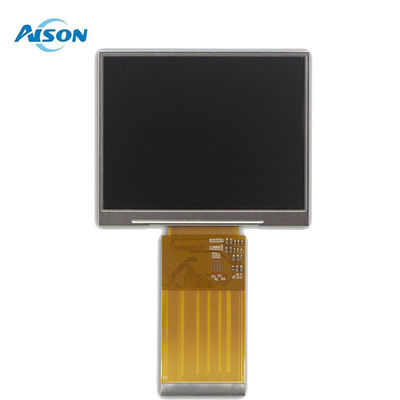

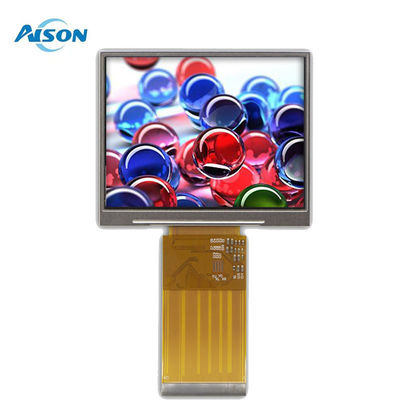

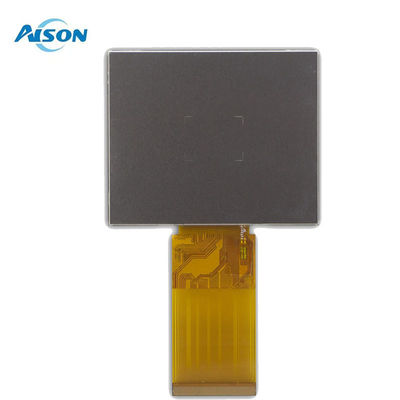

3.5 Inch TFT LCD Display 320x240 SSD2119 Driver IC MCU Display Panel 60 Pin
Display General Description
The AISON TFT Z035Q08 is a high-performance, versatile color display module designed for a wide range of applications. Featuring a 3.5-inch TN TFT LCD screen, this module offers a resolution of 320x240 RGB pixels and a typical brightness of 350 cd/m², ensuring vibrant and clear visuals. Equipped with the SSD2219 driver IC, it supports a 24-bit RGB/MCU interface, making it fully compatible with a variety of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi.
The 3.5 inch TFT displayZ035Q08 is designed for seamless integration, featuring a 60-pin Flexible Printed Circuit (FPC) and FPC-connector mode. This allows for easy and reliable connections to your PCB's ZIF connector, eliminating the need for complex wiring and saving valuable time during the integration process.
With its adaptability and compatibility, this 3.5 inch 60ppin lcd display is ideal for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its versatility makes it an excellent choice for a wide range of projects.
AISON Technology offers a variety of tailored options to meet your specific needs, including customized FPCs, integrated cover lenses, touchscreens, and driver boards. We are committed to providing you with an optimized display solution that perfectly aligns with your preferences. Additionally, we accommodate customer requests for customized demo kits, ensuring an exceptional customer experience.
General Data
| Product Name | 3.5 inch TFT Display |
| Number of Pixel | 320x240 |
| Interface | RGB/MCU |
| Luminance(cd/m2) | 350cd/m2 |
| Active area | 70.08 x 52.56mm |
| LCM (W x H x D) | 76.90*63.9*3.26mm |
| Viewing Direction(eye) | 12 O'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
The AISON Z035Q08 is suitable for various applications, including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
