7.6 Inch 800*800 Square TFT LCD Display Screen With Capacitive Touch Screen

Square TFT Display
December 22, 2025
Category Connection: Square TFT Display
Chat Now Contact Us
Tags:
#Square LCD Display #Square Touch Display #Square Touch Screen
Brief: Watch as we walk through the full process, from initial setup to real-world testing of the 7.6-inch 800x800 square TFT LCD display with capacitive touch screen for Raspberry Pi 5. You'll see a detailed demonstration of its high-resolution IPS panel, MIPI interface integration, and how its exceptional brightness performs in various lighting conditions.
Related Product Features:
  • 7.6-inch square IPS TFT LCD display with 800x800 high resolution for sharp, detailed visuals.
  • Integrated capacitive touch screen provides responsive and intuitive user interaction.
  • MIPI interface compatibility ensures high-speed data transfer and seamless integration.
  • High brightness of 1000cd/m² guarantees clear visibility even in bright ambient light.
  • Wide operating temperature range from -20°C to +70°C for reliable performance in diverse environments.
  • Compact module dimensions of 142.56mm x 148.24mm x 5.1mm with a 135.36mm x 135.36mm active area.
  • Uses the ILI9881C driver IC for stable and efficient display control.
  • Ideal for industrial control, portable instruments, outdoor displays, and home automation panels.
FAQs:
  • What is the resolution and display technology of this 7.6-inch screen?
    This display features an 800x800 high-resolution IPS TFT LCD panel, delivering sharp and vibrant 16.7 million colors with excellent viewing angles.
  • Is this display compatible with Raspberry Pi 5, and what interface does it use?
    Yes, it is designed for Raspberry Pi 5 and utilizes a MIPI interface for high-speed, reliable data communication between the Pi and the display.
  • How does the display perform in bright or outdoor environments?
    With a high brightness of 1000cd/m² and an operating temperature range of -20°C to +70°C, it remains clearly visible and functional in various lighting and environmental conditions.
  • What are the typical applications for this square TFT LCD display?
    Its square form factor and robust specs make it suitable for industrial control systems, portable measurement instruments, outdoor display systems, and home automation panels.
Related Videos
4 inch Square TFT Display 480x480 with RGB Interface with Touch Display 300 cd/m2 00:24

4 inch Square TFT Display 480x480 with RGB Interface with Touch Display 300 cd/m2

Square TFT Display
March 26, 2025
5 Inch Round LCD Display 1080x1080 LCD Round Display High Resolution 00:23

5 Inch Round LCD Display 1080x1080 LCD Round Display High Resolution
Other Videos
March 22, 2025
LVDS IPS Touch Screen Display 1280x800 IPS Display 10.1 Inch With Captouch Screen 01:27

LVDS IPS Touch Screen Display 1280x800 IPS Display 10.1 Inch With Captouch Screen
TFT Display Video
March 17, 2025
7.6 Inch 800x800 Square TFT Display Module MIPI Interface With HDMI Driver Board 00:39

7.6 Inch 800x800 Square TFT Display Module MIPI Interface With HDMI Driver Board
Other Videos
March 25, 2025
7 Inch Wide Temperature 800x480 Industrial TFT Display 500 Cd/M2 IPS LCD Panel 00:29

7 Inch Wide Temperature 800x480 Industrial TFT Display 500 Cd/M2 IPS LCD Panel

Industrial TFT Display
March 23, 2025
Aison Factory Scene 02:53

Aison Factory Scene
Factory Scene
December 31, 2024

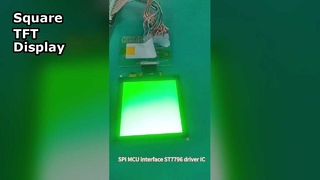

3.92 Inch 320x320 Square TFT Display With Driver IC ST7796 HDMI Board 00:06
