Product Details:
|
| Name: | 5 Inch Round Touch LCD Display | Resolution: | 1080x1080 |
|---|---|---|---|
| Outline Dimension: | 148.1*148.1*3.205mm | Active Area: | 127.01 (H) *127.01 (V)mm |
| Interface: | Mini HDMI | Viewing Angle: | 80/80/80/80 |
| Brightness: | 300 Cd/m2 | Display Mode: | Normally Black |
| Highlight: | 1080x1080 Round TFT Display,Round TFT Display for Advertising,5 Inch Round TFT Display |
||

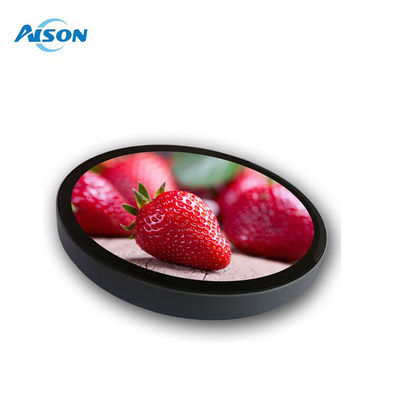

5 Inch Round TFT Display 1080x1080 Rouch Touch Display with Enclosure for Advertising
General Description
The Z050YMM-J40-68P0C is a circular and high-quality 5.0-inch IPS TFT LCD module manufactured by BOE. It boasts a high resolution of 1080x1080 RGB pixels on a black background, delivering an exceptional visual experience. The module's brightness of 300cd/m2 ensures clear visibility in various lighting conditions, providing optimal viewing comfort.
Powered by the reliable HX8399C driver IC and supporting the MIPI 4 Lane interface, the Z050YMM-J40-68P0C guarantees consistent and dependable performance. It is designed to be compatible with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This extensive compatibility makes it suitable for diverse applications, such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.
| Product Name | 5 inch Circular TFT Display with PCAP |
| Number of Pixel | 1080x1080 |
| Interface | Mini HDMI |
| Luminance(cd/m2) | 300 cd/m2 |
| Active area | 127.01 (H) *127.01 (V)mm |
| LCM (W x H x D) | 148.1*148.1*3.205mm |
| LCD Driver IC | HX8399C |
| CTP Driver IC | GT911 |
| Viewing Direction | 80/80/80/80 |
| Contrast Ratio | 1300:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
