Product Details:
|
| Item: | 5.7 Inch Resistive Touchscreen Display | Resolution: | 320x240 |
|---|---|---|---|
| Outline Dimension: | 144.0*104.6*14.5mm | Active Area: | 39.18 X 94.032mm |
| Interface: | 18 Bit RGB | Luminance: | 600 Cd/m2 |
| Display Mode: | TFT,Normally White | Driver Controller: | HX8218C04+HX8615C |
| Operating Temperatures: | -20 To 70 Degree | Storage Temperatures: | -30 To 80 Degree |
| Highlight: | 5.7 Inch Resistive Touchscreen Display,Resistive Touchscreen Display 320x240,Touch Screen LCD Display Module |
||

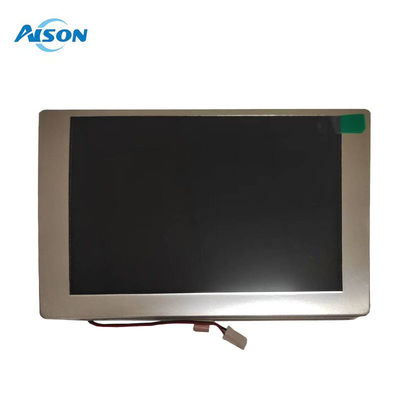

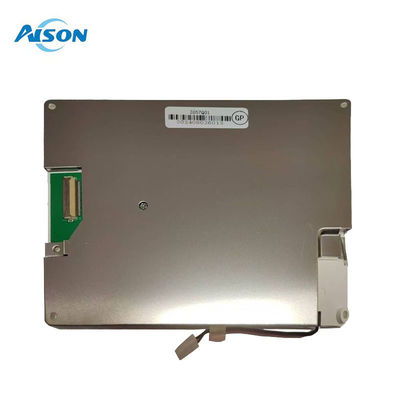

5.7 inch 320x240 LCD Module Display 320x240 RGB Interface with RTP 600cd/m2
Display General Description

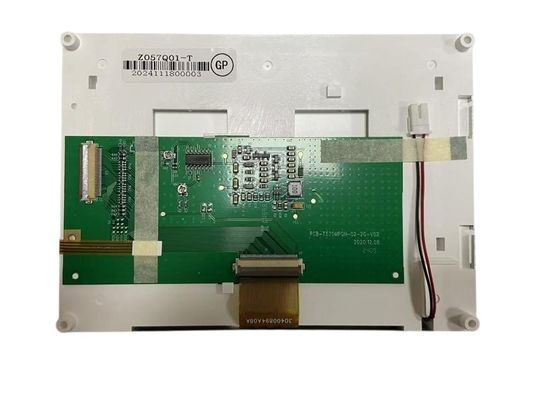

The Z057Q01-T is a 5.7-inch TFT LCD resistive touch display, featuring a vivid resolution of 320 x 240 dots and an impressive brightness of 600 cd/m². This 5.7" TFT LCD module is powered by an HX8218C04+HX8615C driver IC supporting 18-bit RGB interfaces, ensuring vibrant colors and sharp images. With a module size of 144.0*104.6*14.5mm and an active area of 115.20*86.40mm, it offers ample screen real estate for various applications.
With its 5.7" LCD panel, the Z057Q01-T provides a clear and detailed visual experience. Its 12 o'clock viewing direction and 6 o'clock grayscale inversion ensure optimal viewing from any angle. Designed to withstand harsh environments, it operates reliably in temperatures ranging from -20°C to +70°C, with a storage temperature range of -30°C to +80°C.
This 5.7" TFT LCD display is equipped with a Resistive Touchscreen Display,making it perfect for medical devices like patient monitoring systems, ultrasound machines, and medical imaging equipment. Moreover, in industrial automation and control systems, its responsive touch interface provides operators with intuitive control over machinery and processes, ensuring efficient operation and maintenance.
In summary, the Z057Q01-T combines the benefits of a high-resolution 5.7" TFT LCD display with advanced touch functionality, making it an ideal choice for a wide range of applications where clarity, reliability, and intuitive user interaction are paramount.
General Data
| Model Name | 5.7 inch RTP TFT LCD Display |
| Resolution | 320x240 |
| Model Size (W*H*T)mm |
144.0*104.6*14.5 mm
|
| Display Area (W*H)mm | 115.20*86.40mm |
| Interface | 18 bit RGB |
| Display Mode | Normally White TN,Transmissive |
| Viewing | 12:00 o'clock |
| Brightness | 600 cd/m2 |
| Pin number | 33 |
| Drive IC | HX8218C04+HX8615C |
| BACKLIGHT TYPE | 21-DIES WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details

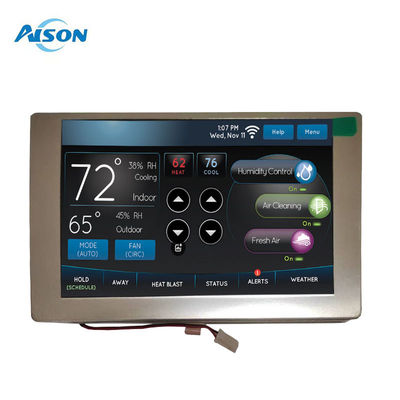

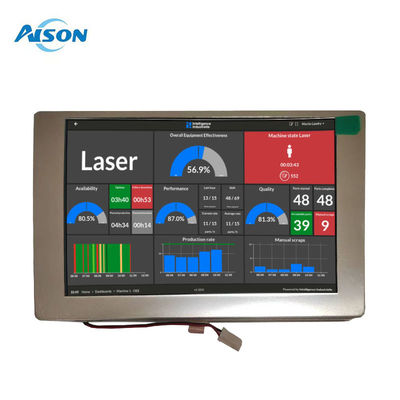

TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Mixing Consoles
Medical Monitoring Equipment
Industrial Equipment Control Panels
